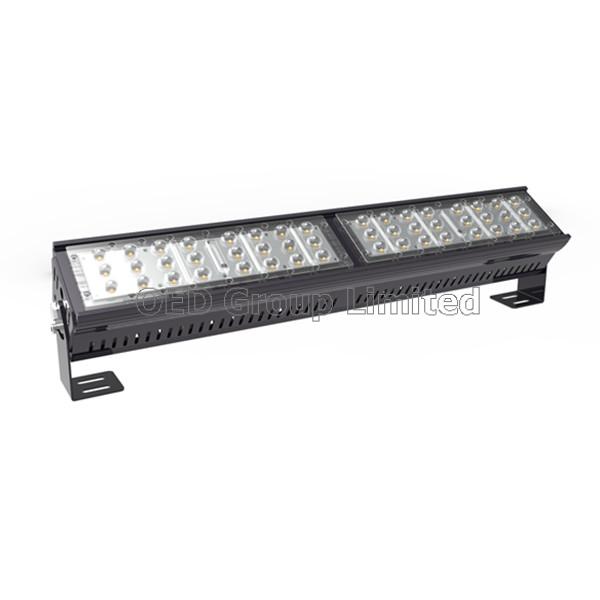

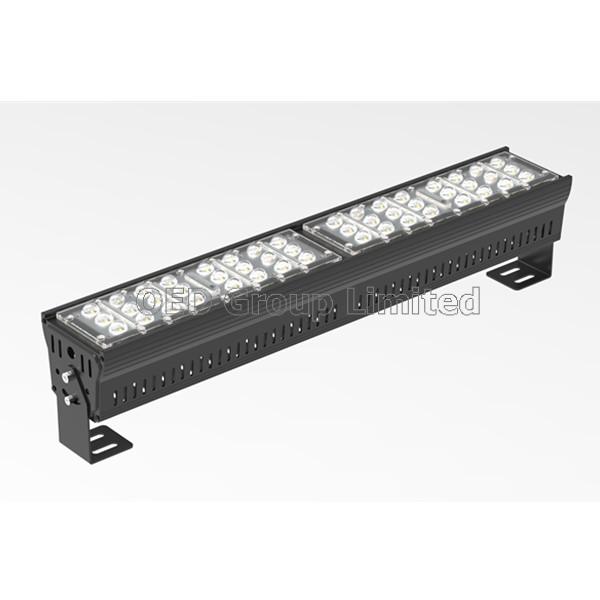

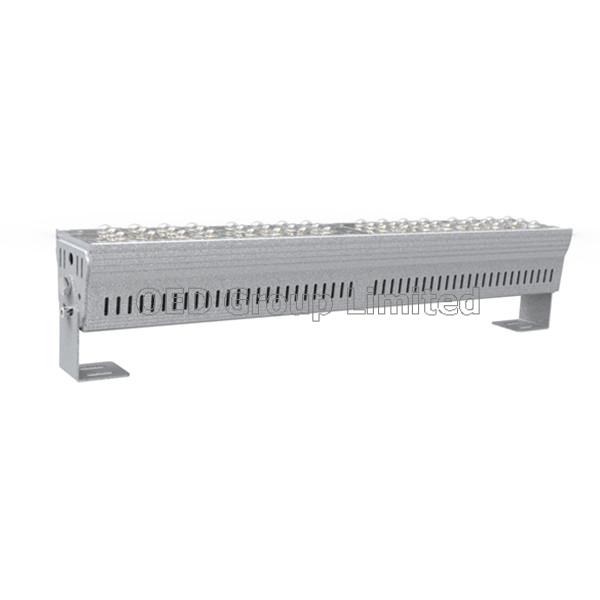

IP65 100W LED Linear Light With Philips 3030 LED and Meanwell Driver

  • Product Item:OED-SD3-100W
  • Category:LED Linear Light
  • Views:1750
  • 100W LED Linear Light
  • IP65 LED Linear Light
  • Philips 3030 Linear Light
  • Meanwell driver Linear Light
  • Product Manual:IP65 100W LED Linear Light With Philips 3030 LED and Meanwell Driver
BASIC INFO

IP65 100W LED Linear Light With Philips 3030 LED and Meanwell Driver


Technical Data:

CCT: CW 6000-6500K,  NW4500K,  WW3000-3500K,
Input voltage: AC85-265V / 50-60Hz
Dimensions: L603 x W100 × H130MM
LED source: Philips Chip 3030 - 112PCS
Lumens: 12,500LM
CRI: RA80
Aluminum lamp housing
Defend: IP65
PF. 0.95
Lifetime: 50,000 hours

Led High bay linear light Features:
1. Using Philips LED as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. Highbay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature.
3. The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, IP65 waterproof and dust-proof.
4. Highbay light adopted advanced constant current controlling techniques, wide voltage range available,overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury


Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Philips & Bridgelux chip, superior light source
3. OEM & ODM welcome, independent R & D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan


Aging Test:
All our LED high baylight will be tested before shipping,so that we can ensure the quality and light performance.Because we must be responsible to our customers.


Packaging of Linear LED high bay lights :
Our individual package maximize protecting LED high baylights from transfer damage in transit.
1. Label on backside of each led high bay lights and your required label is available.
2. One piece led high bay Light per carton.
3. This is our regular packing of led high bay lamps,if you need,we can also custom color packing  and put your logo on it.


Installation and Application:
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
