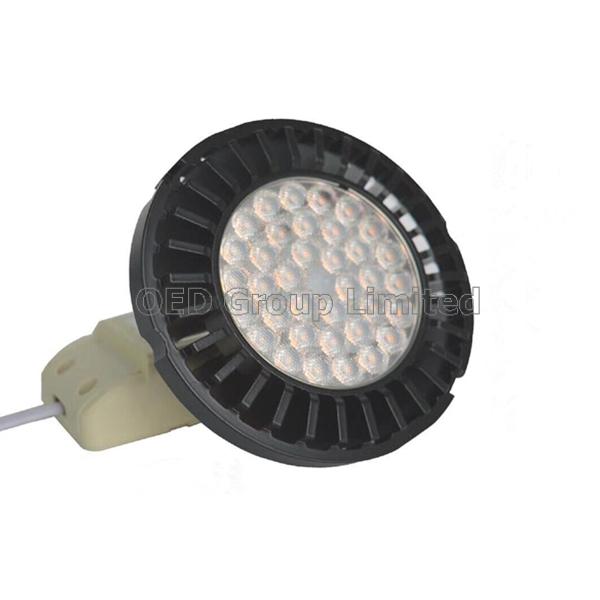

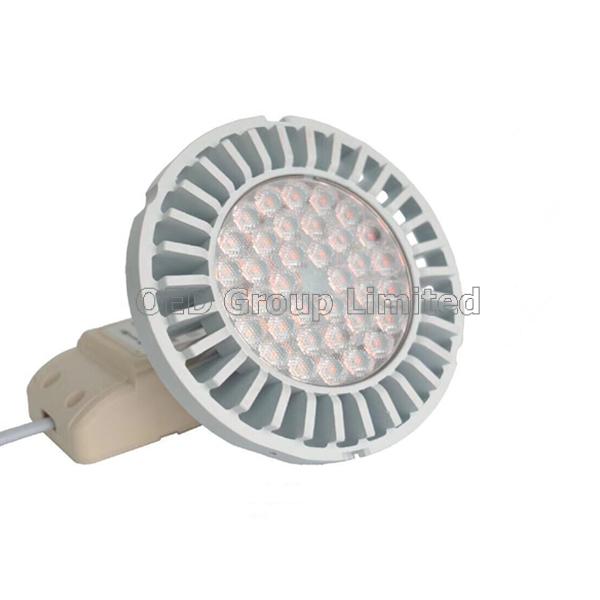

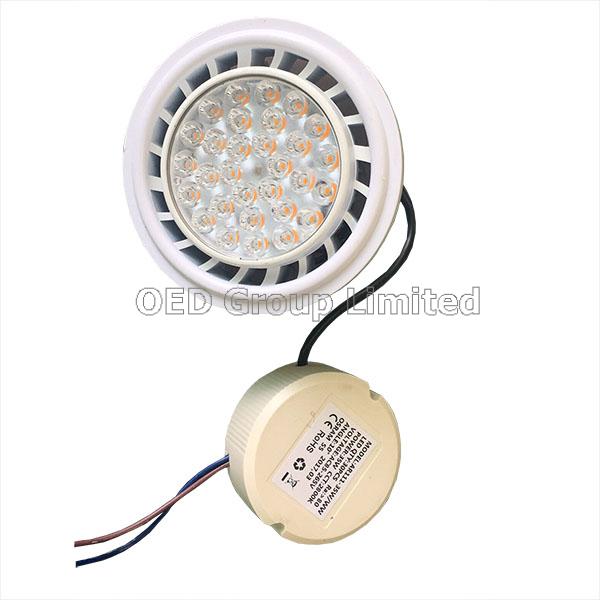

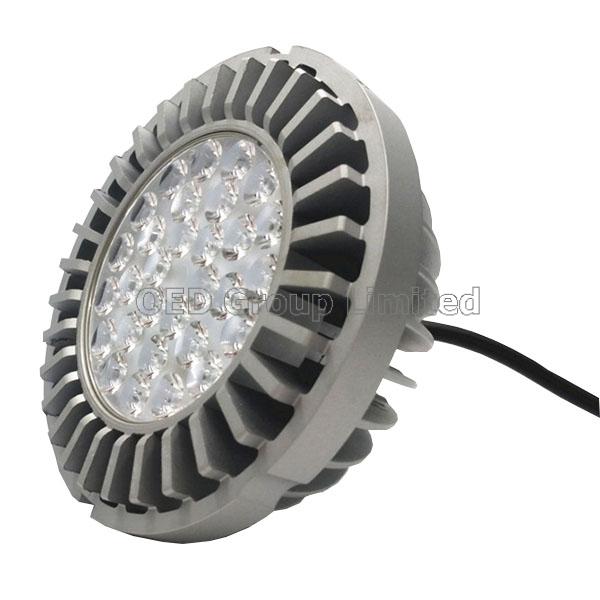

Isolated Driver Osram Chip 100-277VAC 35W AR111 LED Bulbs with External Driver

  • Product Item:OED-AR111-35W
  • Category:AR111 LED Bulb
  • Views:1500
  • AR111 bulb
  • AR111 LED bulb
  • AR111 LED lamp
  • AR111 LAMP
  • Product Manual:Constant Current Isolated Driver Osram LED Chip 100-277VAC 25W G53 GU10 AR111 LED Spot light with External Driver
BASIC INFO

Isolated Driver Osram Chip 100-277VAC 30W G53 GU10 AR111 LED light with External Driver


Model number: OED-AR111-35W

Base type: G53 or GU10

Model Name: OED -AR111-35W
Power Watt: 35W
LED Qty: 36pcs OSRAM S5 LEDs
Input Voltage: AC100-240V, Built-out driver only
Output Voltage: 36VDC
Lumen: 3100-3400lm
Efficiency: >90LM/W
CCT: WW 2800K-3200K, NW 4000K-4500K,  CW 5800K-6200K
CRI:>82
Material: AL+ Lens (Silver or White)
N.W: 0.5KG
Working Temperature: -20~50
Size:111*46 mm
Angle:10°, 15°, 25°, 45°, 60°
Warranty: 3 years

Features:
1. With SAA/ETL/UL/CE/RoHS Directive-compliant certifications
2. Unique configuration design and superior aluminum housing for excellent heat sink
3. Qualified driver helps increasing 5-10% efficiency than contemporary driver
4. High-class low ESR electrolytic capacitor to protect power supply
5. No UV or IR radiation
6. Non-dimmable two options
7. Main material: aluminum-alloy
8. Input voltage: 100-277V AC
9. Warranty: 3 years
10. Lens angle: 10/15/25/45/60°


Applications:
1) Adapted to variety of lamps or traditional housing
2) Directly replace the traditional G53 halogen spotlight
3) Home and office lighting
4) Shopping mall lighting
5 Display case lighting
6) Under cabinet lighting
7) Art lighting
8) Board lighting
9) Back lighting, step lighting, light boxes
10) Cabinet and under counter lighting
