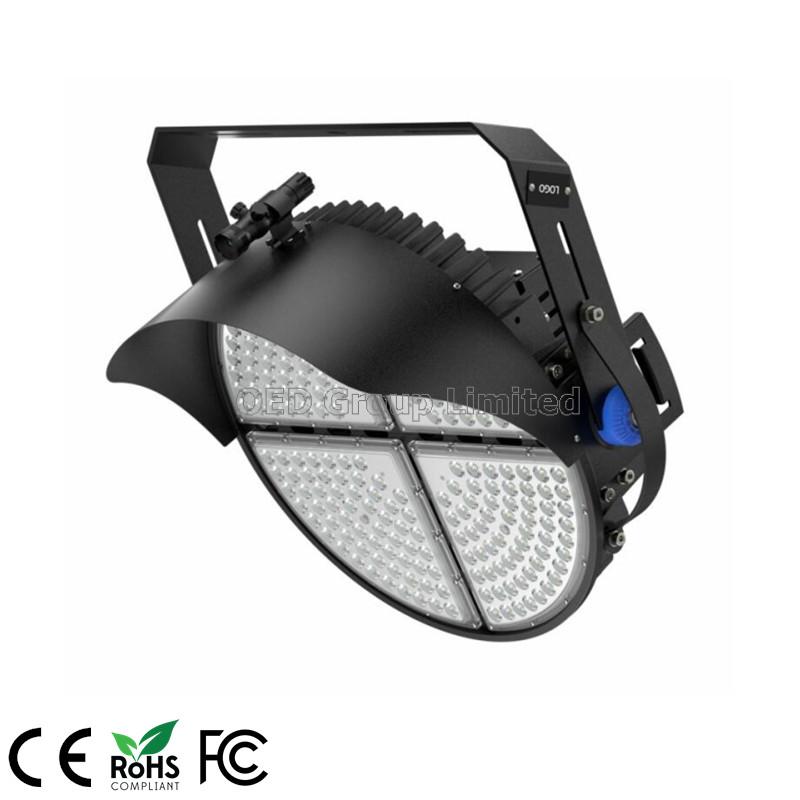

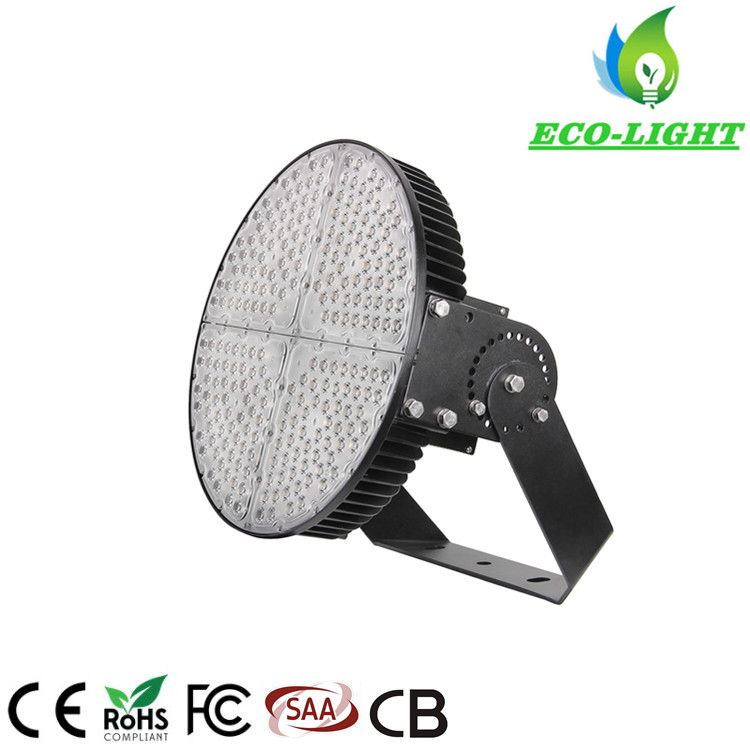

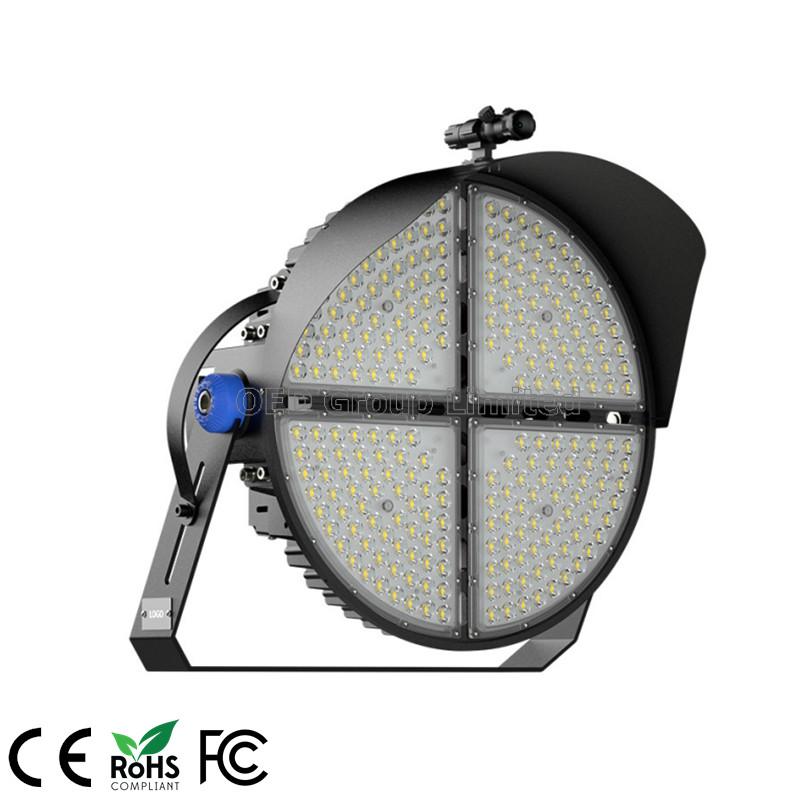

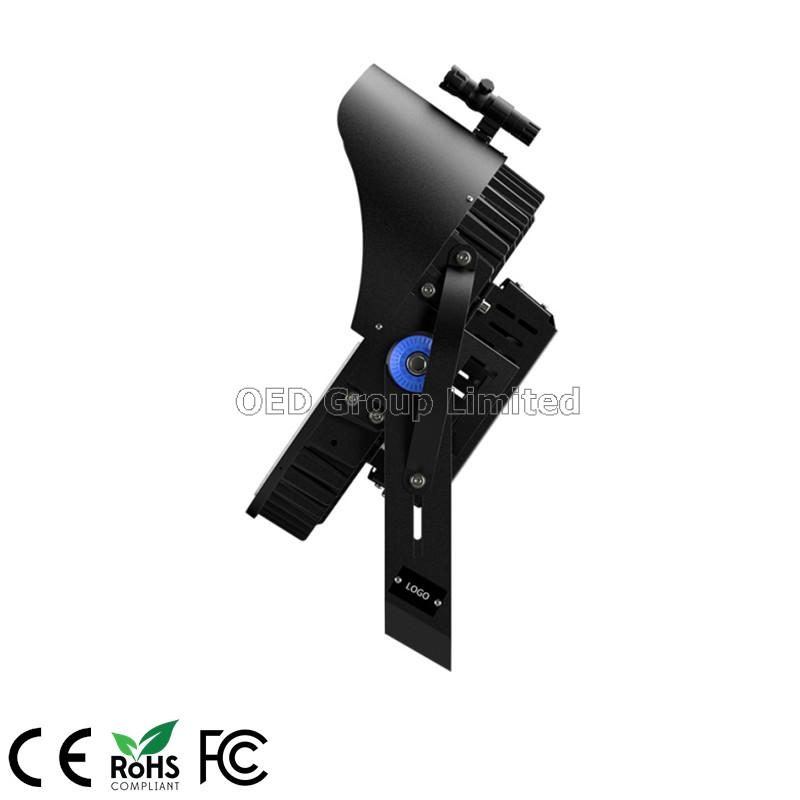

Outdoor high mast luminaire 1200W led floodlight IP66

  • Product Item:HL-SP4B-1200W
  • Category:Round high mast flood light
  • Views:843
  • Lumileds 5050SMD 160LM/W
  • ADC12 Aluminum IP66
  • P.F.>0.95 & Muilt-beam
  • 5 years warranty
  • Product Manual:1200W LED outdoor flood lights with IP66 PF0.95 multi-beam ADC12 aluminum radiator lumileds 3030SMD 160LM/W 5 years warranty
BASIC INFO

IP66 multi-beam round outdoor lamp aluminum luminaire 1200W led flood light

Technical Data
Item
IP66 round shape LED Stadium flood light
Power
1200W
Input Voltage
AC100- 277V / 50-60Hz
Light Source
Philips brand Lumileds chip 3030 SMD LED
LED Qty
960 pcs
Viewing angle
15°  / 30° / 45° / 60°
Color Temperature
3000K,4000K, 5000K, 5700K, 6500K
CRI
Ra.>80
Materials
ADC12 Aluminum, integrated design
Operating Temp.
-25°C - +50°C
Applications
Outdoor lighting,Port and Harbour, Stadium,Square,factory etc.
Dimensions
Φ697 x 520mm
N.W.
33KG
G.W.
35KG, 1pc/carton
Materials:
Powder Coating Aluminum Alloy & Polycarbonate optical lens
Carton size
88x 62 x 77cm, 1pc/carton
Certificates
TUV,CE,ROHS,ETL,EMC,LVD,SAA,CB,ISO9001
Lifetime
50,000 hours
Warranty
5 years

1.LED high bay floodlight adopts Lumileds 3030 SMD chip, energy saving and environmental protection, high luminous brightness and long service life;

2. It adopts ADC12 die-casting aluminum material, the surface is subjected to special oxidation treatment and heat conduction treatment, which can improve the heat generated by the lamp board and the power source of the lamp to quickly lead out the lamp body, reduce the temperature difference, reduce the junction temperature of the light source, and ensure the light source light decay 3%, life expectancy of 50,000 hours;

3. Adopt constant current power supply, high efficiency, low heat, high constant current precision; unique structure, high efficiency, energy saving and green environmental protection.

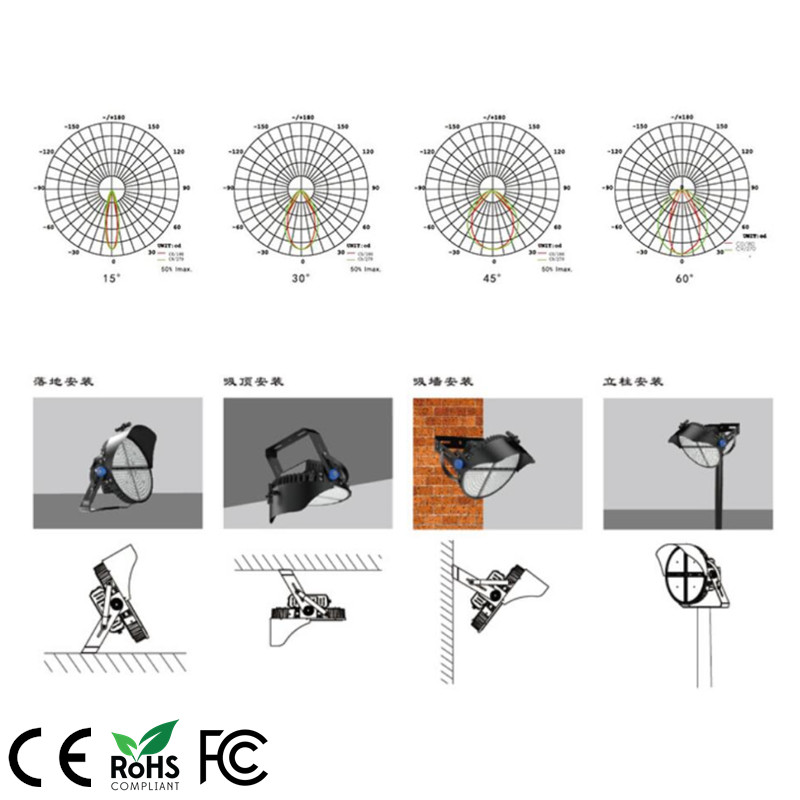

Product Feature & mounting

1.ADC12 aluminum & honeycomb treatment for better heat dissipation,the heat can be delivered rapidly and ensure lifespan of LED lamp.

2.Optical PC lens with the lighting transmittance greater than 94% and light efficiency reach more than 160LM/W.

3.Professional accurate beam angles and light distribution: 15° / 30° / 45° / 60°.

4.High effciency constant current driver, AC100-277V.

5.Philips chip,CRI>80,high light efficiency,suitable for different kind of engineering projects.

6.IP66 waterproof rate.

7.UL,ETL,TUV,CB,CE,FCC,SAA,ROHS certificates.
