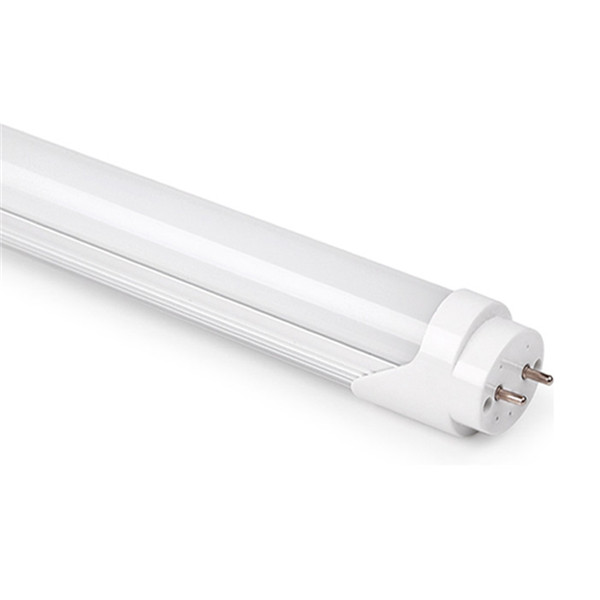

3 Years Warranty 2FT 600MM 10W T8 LED Light Tube from China Manufacturer AC85-265V

  • Product Item:OED-F2660-10W
  • Category:Classic T8 tube
  • Views:1257
  • T8 LED TUBE
  • 2FT T8 LED Tube
  • 600mm T8 Tube
  • 10W 1000LM Tube
  • Product Manual:3 Years Warranty 2FT 600MM 10W T8 LED Light Tube from China Manufacturer AC85-265V 50-60Hz
BASIC INFO

3 Years Warranty 2FT 600MM 10W T8 LED Light Tube from China Manufacturer AC85-265V

Model No. OED-F2660-10W
Watt: 10W
Size: D26 * H. 600mm
CRI. Ra.>80
Lumens:  1050-1100LM
Fire rating: V2
LED Quantity: 60pcs 2835SMD
Price depends on order size, 100pcs, 500pcs, 2000pcs and 5000pcs different.


Beam angle: 140 degree;
CCT: 3000K, 4200K, 6000K available;
Warranty: 3 years;
Quality: CE ROHS standard;
Lifetime > 50,000 hours.
MOQ: 25pcs;
Packing: neutral packing for normal, and OEM design available with extra cost;
N.W. 220G/ 25pcs/ Carton, CTN Weight: 7.5KG/ CTN Size: 670*240*250mm;
Delivery time: within 6 days, and 12 days for big order;
Payment: western union, Paypal, TT bank transfer, 30% deposit in advance, 70% balance paid before delivery.


Introduction:
Green lamp without Pb and Hg. Using Hi-quality, Hi-brightness LED as lighting source, free from glare and flicker, and has average luminous surface. Adopting  lampshade materials with more than 90% light transmittance. Using good aluminum alloy shell to speed up heat diffusion. Lifespan is on average over 50,000hrs, 10 times longer than traditional lamps. It could be installed without ballast and starter, connecting directly to AC85-265V & 50-60Hz voltage.


Application:
Widely used in lighting indoor, such as office building, market, factory, school, hospital, hotel, etc.
Feature: No Pb,Hg or other pollution elements, 60% energy saving compared with traditional lamps.

1. Installation
Above picture is the installation diagram of led tube light.
a) Remove starter and ballast before installation.
b) To labeled end tip of LED fluorescent tube and turn on AC power.

2. Warning Note
a) Working Voltage: AC85V~265V 50/60Hz. Do not exceed the operating voltage range.
b) This product is prohibited material immersed in liquid.
c) The tube is designed for moisture-proof use only. Don't put it into water.
d) It's normal that the device will delay starting 2 seconds due to carrier charging after the turning on.

Input Voltage AC85-265V 50-60HZ
Electrical input single-end
Working temperature -25°C-50°C
Driver Isolated
LED type smd2835
IP rate IP54
tube cover milky/frosted or clear
Material aluminum body with PC cover
