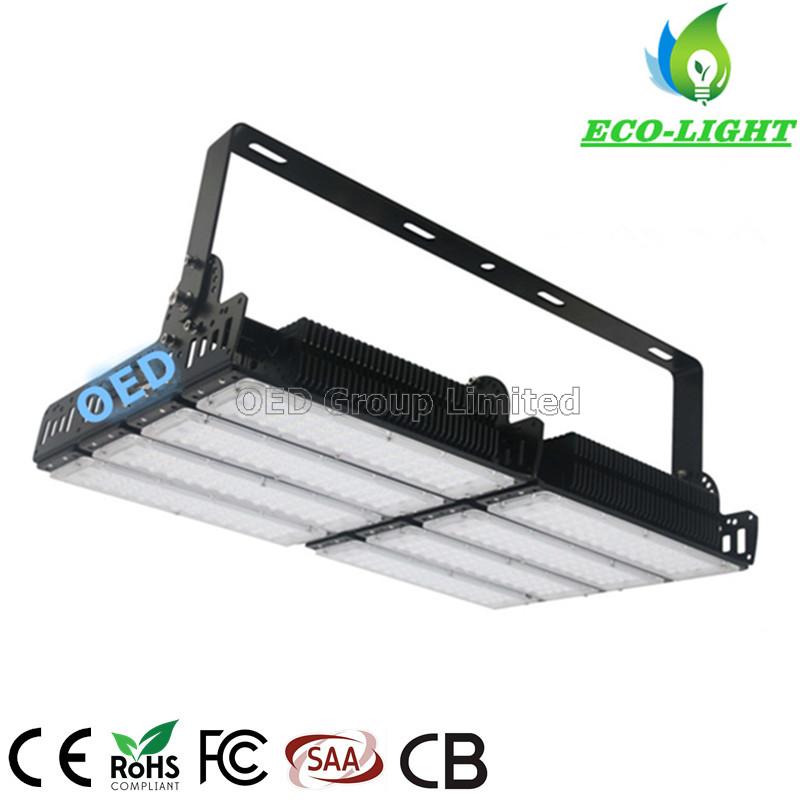

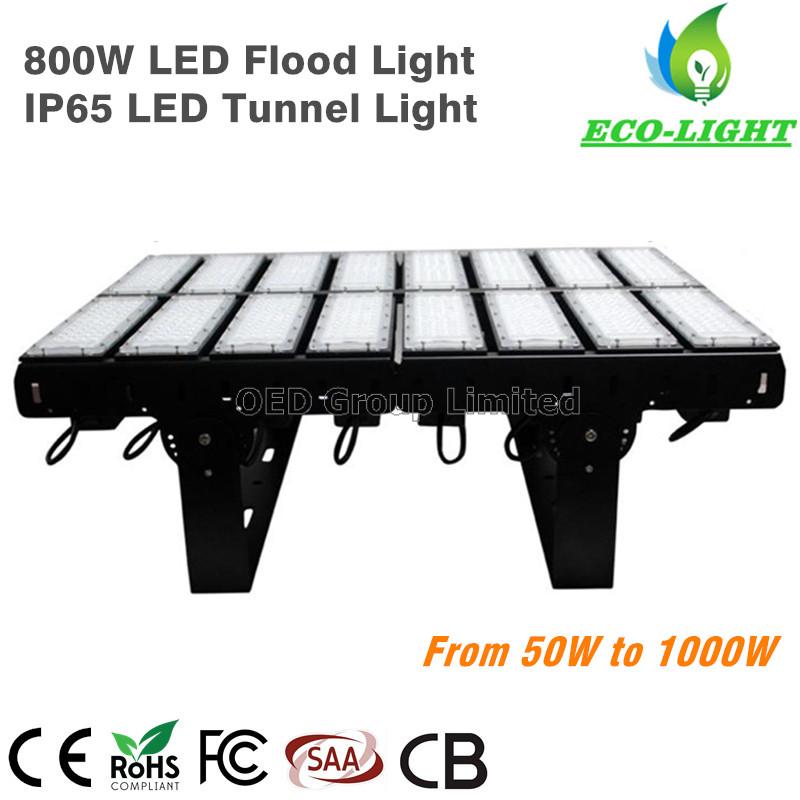

3030SMD Module Philips Chip LED Flood Lighting SMD 800W LED Flood light

  • Product Item:OED-FL08-800W
  • Category:Module LED Floodlight
  • Views:1367
  • 5 years warranty
  • led flood light 800w
  • IP65 led flood light
  • 3030SMD Philips led chip
  • Product Manual:3030SMD Module Philips Chip LED Flood Lighting SMD 800W LED Flood light

3030SMD Module Philips Chip LED Flood Lighting SMD 800W LED Flood light

China factory PF.>0.9 60 / 90 / 70*140 Beam angle led flood light

Technical data:

Item Name IP65 800W LED Flood Light
Power Consumption 800W
Input voltage AC85-265V / 50-60Hz
Light source SMD3030 LED Module 50W x 16
LED Qty 48pcs x16
Beam angle 60 / 90 / 70x 140 deg. for option
Lamp dimensions 720 x 570 x 130mm
Color temprature 3000-3500K, 4500K, 6000-6500K
CRI > 80Ra.
Power factor > 0.95
Main materials Die-casting aluminum with black painting, PC lens
Lifetime 50,000 hours
Quality warranty 3 years / 5 years for option
Application Bus station, railway station, airport, stadium, parking lot, sqaure, tunnel lighting etc.
Item N.W. 23KG
Qty / Carton 1PC
Carton Size / G.W. 76 x 63 x 18 / 25KG
Certificates CE, RoHS, LVD, EMC, ISO9001

led flood tunnel light.jpg


-Die-cast Aluminum is combined with the 1060 aluminum fins.
-Optical PC material lens, multi beam angles for option.
-Surface powder treatment, with anti-corrosions & anti-rust functions.
-IP65, dustproof and waterproof, to meet all kinds of outdoors environment.
-Surge protection: 6KV.

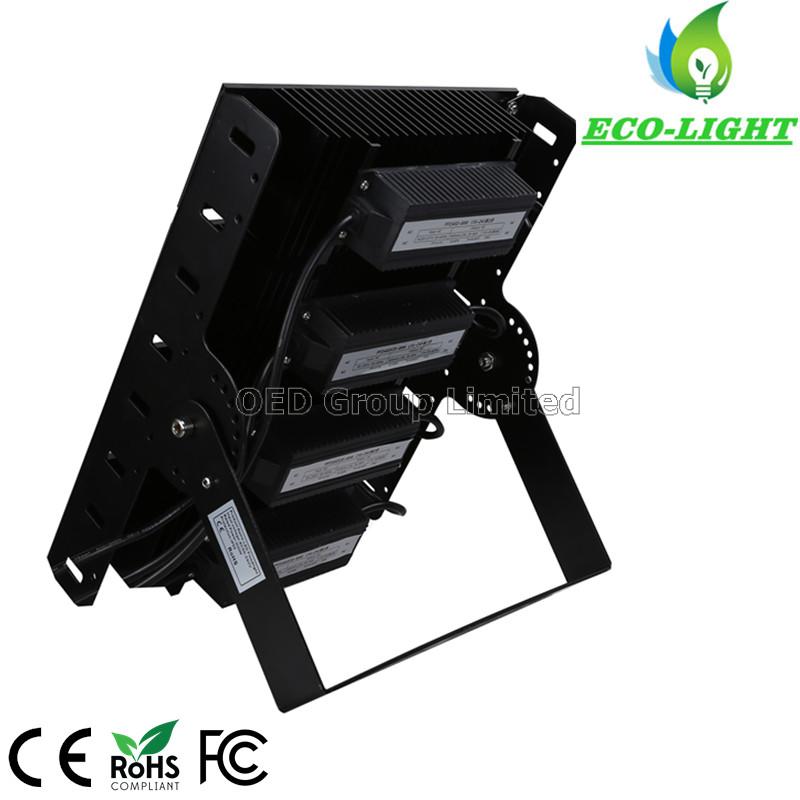

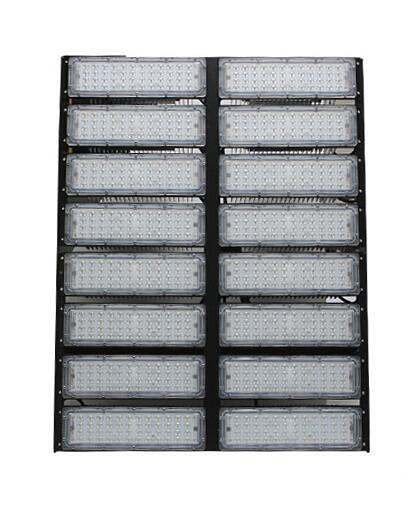

-50W x 16pc Standard LED module, each module with one power supply.  So there are 16pcs 50W LED modules and 16pcs LED Power supply backside. All modules and drivers are easy to replace.


It can be widely used in Tunnel, Square, Plaza, Garden, Lawn, Playground,Tennis Stadium, Golf Course, Bus Station, Airport, Sculpture, Architecture, Arts Work,Street, Factory offices, Show Room, Work Shop, Parking lot etc.

use of module flood light.jpg

Installation instructions:

-Non-professional people do not repair or modify this product without our authorization.

-Please be sure to turn off the power before installation.

-Before installing, please check whether the voltage marked on the high pole lamp is consistent with the input voltage to be connected.

-In order to ensure the lifetime of the product, please do not use it in a place with strong acid mist.

-Install it in a flat place without vibration, no swing, no fire hazard.

-If the lamp body cable damaged, please stop using it immediately.

Projects for Tunnel lighting:

tunnel lights 2.jpg

Our workshop:

We have 6 production lines at production department, including assembling, inspection and aging test lines.

Production ability: 5-7 days for 500pcs LED Flood lights, and 10-15 working days for 3000pcs LED Flood Lights at common requirements.

workshop and pack.jpg

Quality Control:
Each Lamp must pass min. 24 hours aging test and high voltage (6KV) surge test before we make packing and make delivery.

flood light aging test (1)_.jpg

Lighting Fair:

We attend HK lighting Fair  in October and Canton Lighting Fair in June each year. And welcome to visit us there.

Our Services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application.
3.  5000,000 pcs light source annual production capacity, main of the products export to Europen markets, Kazakhstan, Russia, South American markets etc.
4. Support OEM & ODM.
5. FOB ports Shenzhen or Shanghai port.
6. Discount offered will be based on mass order quantity.
7. High quality component and material, such as Osram, CREE, Bridgelux, Philips or Epistar LED chips, Meanwell or CE, TUV, CB, FCC listed driver, PCCOOLER or Die-casting aluminum radiator.


Payment Terms:

TT Bank Transfer, support 30% deposit and 70% before delivery.

PayPal, western union, alipay etc.


Delivery time:
Samples and less than 100pcs in 3-5 working days.
500pcs in 7-8 working days.
3000pcs in 15 working days.

About Shipping:
Samples sent by DHL,TNT, Fed EX, UPS, SF Express, aramex etc. Door to door, you may pay customs tax depends on your customs policy.  By air or by sea for bulky orders available.

1. Are you factory supplier?

Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply durable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?

Yes, we can supply OEM and ODM service with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?

It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs IP65 LED tunnel flood lights.

4. What about your after-sales service and warranty policy?

We offer 3 years / 5 years warranty with different price for this tunnel flood light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
