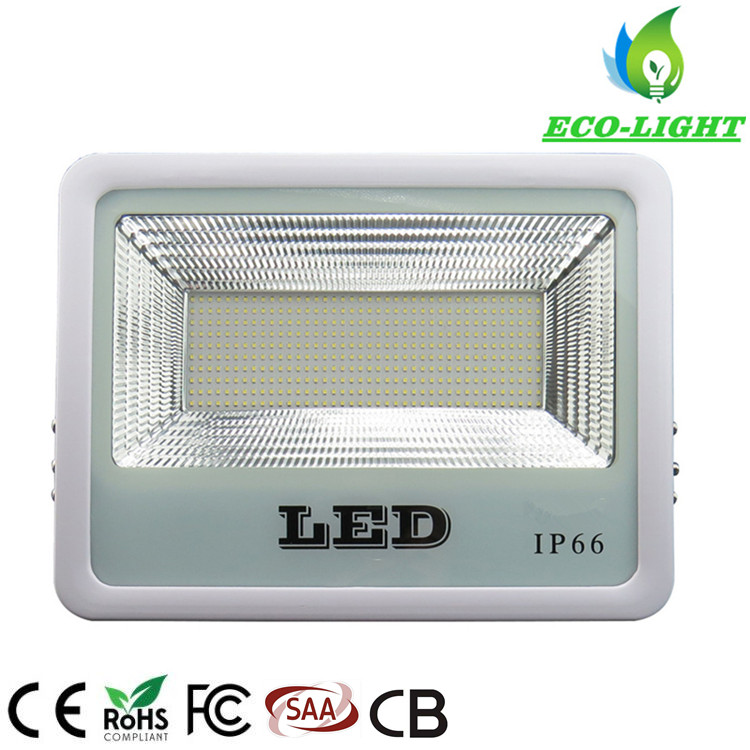

Factory Direct 200W Outdoor Waterproof Ultra-Thin Energy-Saving SMD LED Flood light

  • Product Item:OED-NB-200W
  • Category:LED Floodlight
  • Views:1000
  • SMD LED flood light 200W
  • Outdoor LED flood light 200W
  • IP66 waterproof LED flood light 200w
  • led flood light 200w
  • Product Manual:Factory Direct 200W Outdoor Waterproof Ultra-Thin Energy-Saving SMD LED Flood light
BASIC INFO

Factory Direct 200W Outdoor Waterproof Ultra-Thin Energy-Saving SMD LED Flood light

Technical Data
Item name
200W LED SMD flood light
Power
200W
Light Source
Epistar SMD2835
LED Quantity
400PCS
Input Voltage
AC85-265V 50/60Hz
Color Temperature
3000K / 4200K / 6000K
Light effect
110LM/W
Lumen
22,000LM
PF
≥0.90
CRI
Ra.≥80
IP
65
Viewing angle
120°
Materials
Die-casting Aluminum
Operating Temp.
-25ºC to +55ºC
Applications
Balcony, courtyard, billboard, garden, park, stadium, etc.
Qty / CTN
1PC
G.W.
4.5KG
Lamp dimensions
423 x 323 x 80 mm
Carton size
48 x 38 x 14 cm
Lifetime
50,000 hours
Quality warranty
3 years
Certificates
CE,ROHS, EMC, LVD, ISO9001
Product Feature


1.The lamp body is sealed with tempered glass and waterproof silicone, and the internal epoxy resin is potted. Therefore, the lamp has double waterproof function and excellent waterproof effect,the protection level of the lamp is: IP66.

2. The light source of the lamp adopts imported high lumen high power LED chip, built-in constant current power supply, voltage AC85-265V to ensure the stability of the lamp.

3. The effective projection distance of the lamps is more than 10-200 meters, which is especially suitable for landscape buildings, outdoor squares, building walls and display products.

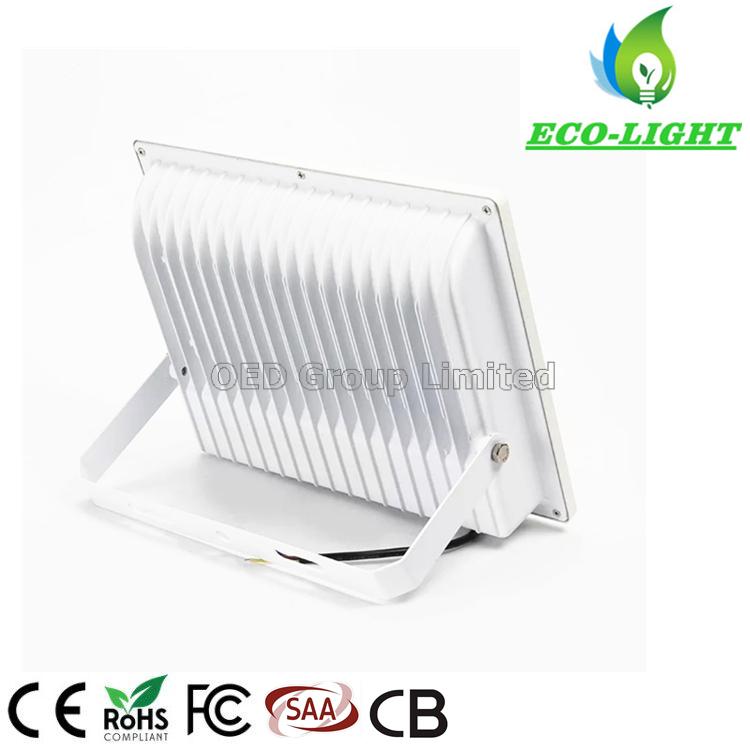

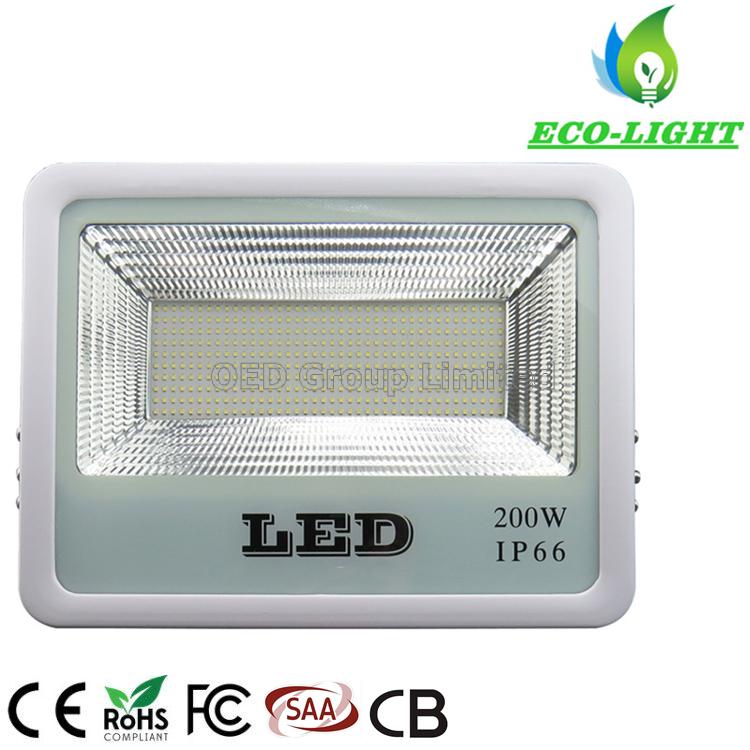

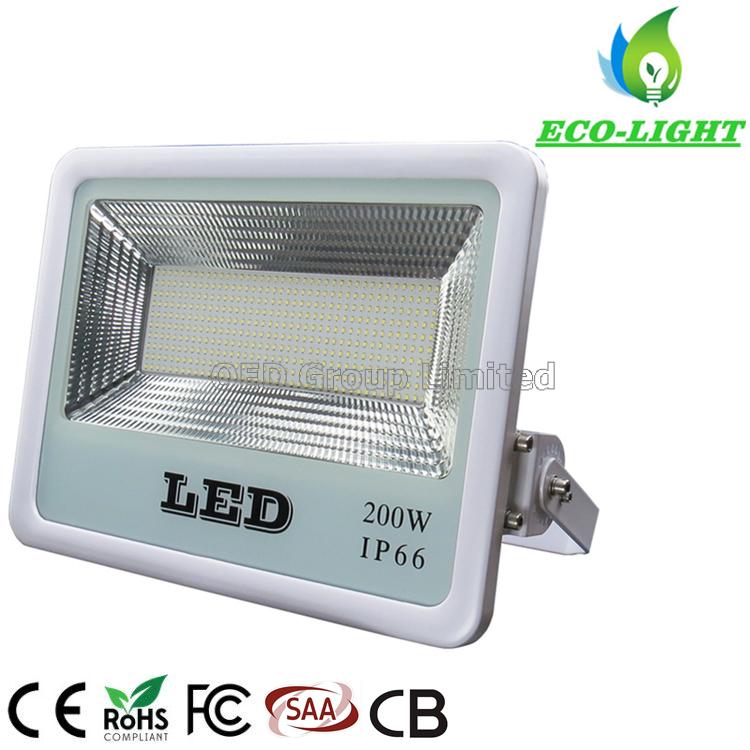

Product Details
Applications

  LED flood light can be used in: outdoor landscape lighting, single building, historical building group exterior wall lighting, building exterior lighting, indoor partial lighting, green landscape lighting, billboard lighting, medical culture and other special facilities lighting, bars Entertainment atmospheres etc.

Installation Notes

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

Contact us
About us

We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Floodlight, and 10-15 working days for 3000pcs LED Floodlight at common requirements.

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3. 5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.


Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 workin
