Factory Workshop Lighting Industrial High Bay Round UFO Flood Lamp LED 150W

  • Product Item:OED-HD-150D
  • Category:UFO LED Highbay Light
  • Views:871
  • ufo led high bay light 150w
  • led high bay light ufo 150w
  • 150w led high bay light
  • 150w high bay light
  • Product Manual:Factory Workshop Lighting Industrial High Bay Round UFO Flood Lamp LED 150W
BASIC INFO

Factory Workshop Lighting Industrial High Bay Round UFO Flood Lamp LED 150W


Technical data:

Item name 150W LED UFO high bay light
Power  150W
Light Source Bridgelux 3030 Chip
LED Qty 252 pcs
Input Voltage AC 85~265V   50/60Hz
Color Temperature 2700-6500K
Light effect 130LM/W
Lumen 19,500LM
PF ≥0.90
CRI Ra.≥80
IP 65
Viewing angle 60°  90°
Materials Die-Casting Alu.+PC
Operating Temp. -25ºC to +50ºC
Applications Factory, Tunnels, Square, Plaza, Garden, Lawn, etc.
Qty / CTN 1PC
N.W. 7KG
G.W. 7.6KG
Lamp dimensions 450 x 100 mm
Carton size 55 x 55 x 17 cm
Lifetime 50,000 hours
Quality warranty 5 years
Certificates CE,ROHS, EMC, LVD, ISO9001



Features:
1. The radiator is Die-casting aluminum, anodic oxidation treatment, with PC cover, anti-corrosion, no dust, no static electricity.
2. AC85-265V Meanwell brand power supply with constant current supply. PF.>0.9.
3. Direct lighting design, 60 / 90 Angles option.
4. Gold wire & copper fixture LED, Bridgelux LED Chip with 130LM/W, high luminous efficiency, low light drop and high energy-saving efficiency.
5. High thermal conductivity aluminum base board and radiator, low temperature rise, good heat dissipation, lifetime is more guaranteed.
6. Whole lamp with 5 years warranty of quality assurance.
7. Assembly line work, large-scale production, stable product performance, and better quality guarantee.

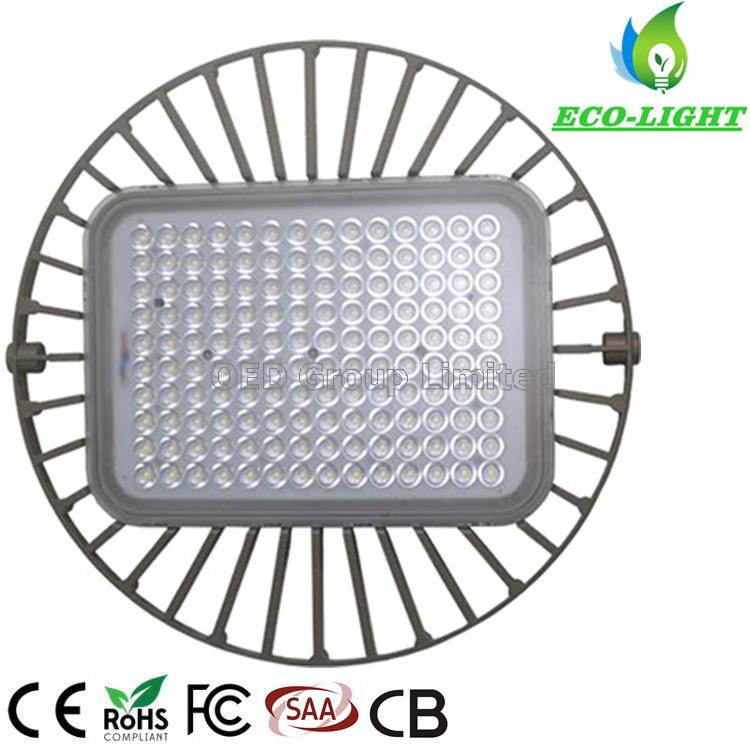

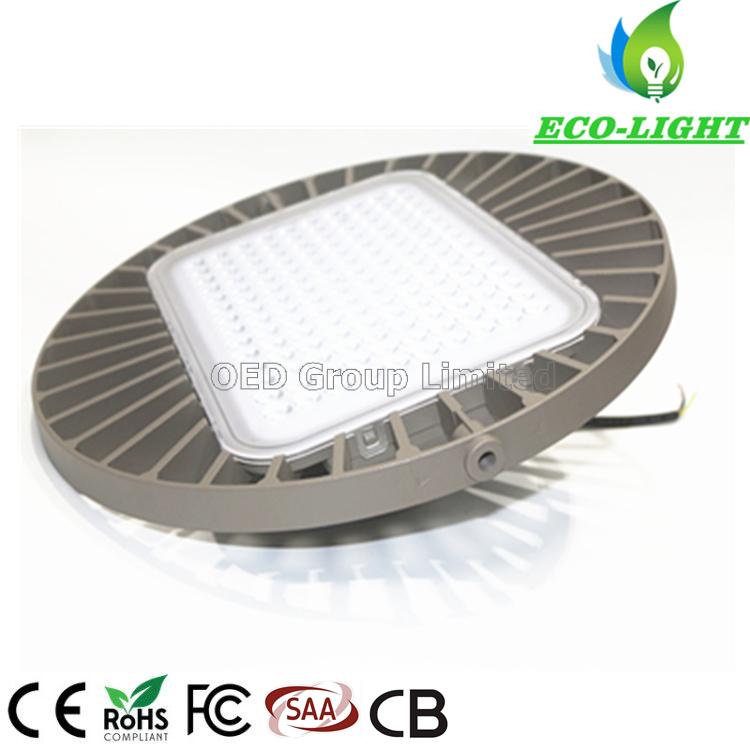

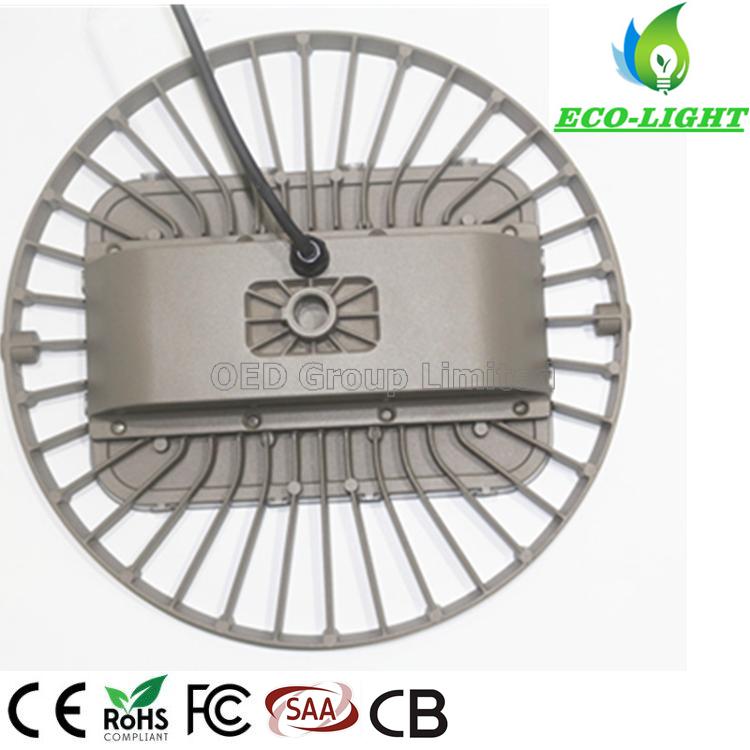

IP65 150W LED high bay light Details:

ufo highbay light.jpg

Application:
Factories, gardens, Logistics Center,Exhibition Center,landscape lighting, landmarks lighting, stadium,Airport, billboards, buildings, parking and other needs of long-range indoor or outdoor lighting.




Light distribution curve:

ufo led highbay light.jpg



Installation method:

led highbay light.jpg



Installation instructions:

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

contact us OED.jpg

Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 2-3 days for 500pcs LED high bay light, and 10-15 working days for 3000pcs LED high bay light at common requirements.
Each Lamp must pass 24 hours aging test and high voltage (2KV, 4KV, 6KV) surge test before we make packing and make delivery.




Our Services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.



Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.
About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
