High Power 500 Watt IP66 Outdoor Lighting Lamp LED Highbay Tunnel Flood Lights

  • Product Item:OED-QC500W
  • Category:High power high mast light
  • Views:847
  • 500 Watt LED Flood Light
  • LED Outdoor Flood Lights 500 Watts
  • 500 Watt Flood Lights
  • Tunnel Flood LED Light
  • Product Manual:High Power 500 Watt IP66 Outdoor Lighting Lamp LED Highbay Tunnel Flood Lights

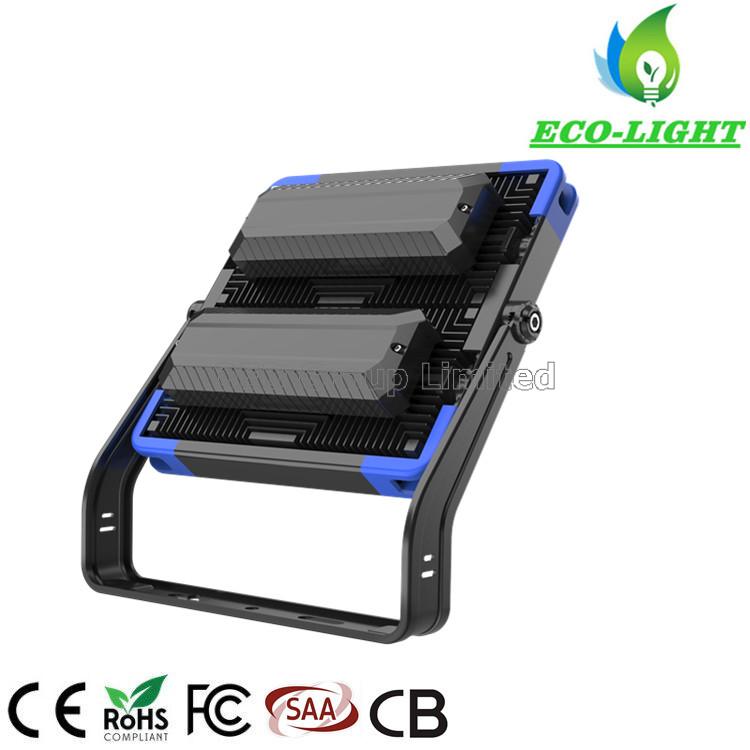

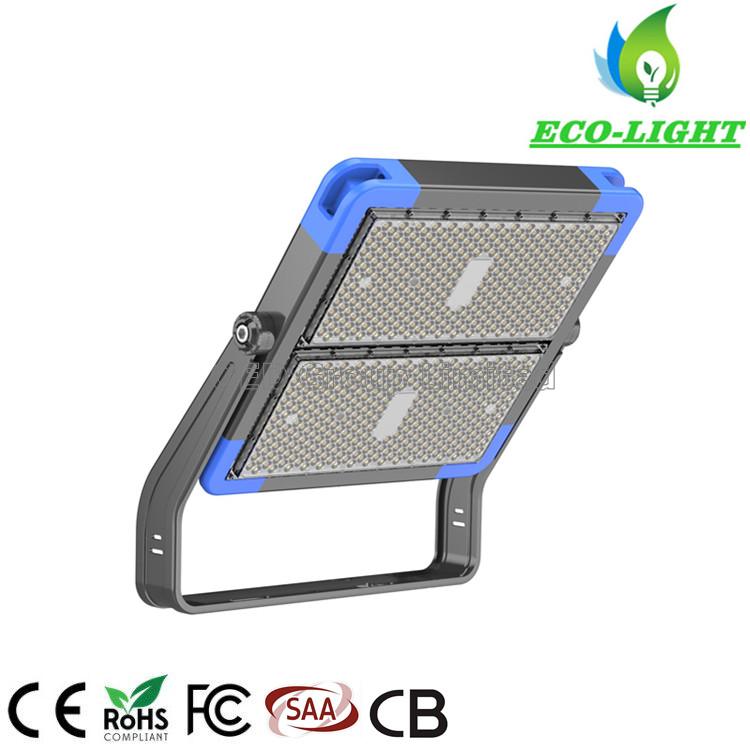

High Power 500 Watt IP66 Outdoor Lighting Lamp LED Highbay Tunnel Flood Lights

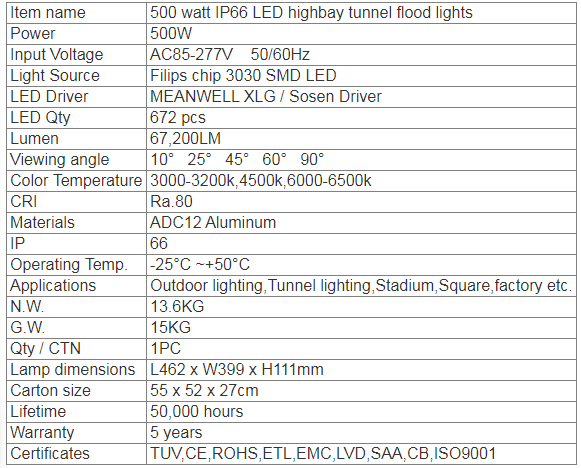

Technical data:

Product manual:

1.LED high pole lamp adopts imported 3030 chip, energy saving and environmental protection, high luminous brightness and long service life.

2. It adopts ADC12 aluminum material shell, the surface is subjected to special oxidation treatment and heat conduction treatment, which can improve the heat generated by the lamp board and the power source of the lamp to quickly lead out the lamp body, reduce the temperature difference, reduce the junction temperature of the light source, and ensure the light source light decay 3%. , life expectancy of 50,000 hours.

3. Adopt constant current power supply, high efficiency, low heat, high constant current precision; unique structure, high efficiency, energy saving and green environmental protection.

Product Features:

1.Special surface treatment,the heat of aluminum board and radiator can be derived rapidly,reduce the temperature difference and ensure the lifespan.

2.Optical PC lens material,the transmittance is 94%,and light effect can reach 140LM/W.

3.Professional light distribution:10°/25°/45°/60°/90°.

4.High effciency constant current driver,AC85-277V.

5.Filips chip,CRI>80,high light efficiency,suitable for different kind of engineering projects.

6.IP66 waterproof class.

7.UL,ETL,TUV,CB,CE,FCC,SAA,ROHS certificates.

Product Details:


It can be widely used in Port,Wharf,Tower Crane,Golf Course,Football Field,and Stadium etc.

Installation instructions:

1. Please read the instruction manual of LED SMD flood light before use.
2. Non-professional technicians, please do not repair or modify this product without authorization.
3. Please turn off the power before installation to avoid improper operation.
4. Before installation, please check whether the voltage marked on the high pole light is consistent with the input voltage to be connected, so as not to damage the LED stadium light.
5. In order to ensure the service life of the product, please do not use it in a place with strong acid mist.
6. Pay attention to earthquake prevention during installation and transportation.
7. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
8. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
9. If the lamp body wire is damaged, please stop using it immediately.

Our workshop:

We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED highbay tunnel flood light , and 10-15 working days for 1000pcs LED highbay tunnel flood light at common requirements.

Each Lamp must pass 24 hours aging test and high voltage (2KV, 4KV, 6KV) surge test before we make packing and make delivery.

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
1000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 1000pcs
LED highbay tunnel flood light.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this
LED highbay tunnel flood light , by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
