Shenzhen factory 200W high power IP65 LED module street road lamp for outdoor lighting

Product Item：OED-YXY-MZ200
Category：Module LED Streetlight
Views：921
200W LED street light
street light led 200w
led street light 200w ip65
led street light smd
Product Manual：Shenzhen factory 200W high power IP65 LED module street road lamp for outdoor lighting

BASIC INFO

Technical Data

Item name	LED module street Light 200W
Power	200W
Input Voltage	AC85-265V
Light Source	Filips Chip 3030 SMD LED
LED Qty	256pcs
LED Driver	MEANWELL Driver
Viewing angle	70°×140° deg
Color temperature	3000-6500K
PF	0.95
CRI	Ra.>80
IP	65
Materials	Die-cast aluminum
Lumen	24,000LM
Temperature	-25ºC - +45ºC
Applications	street,road,highways,square,park,etc.
N.W.	6.4kg
G.W.	7.4kg
Qty / CTN	1pc
Lamp dimensions	L628 × W306 × H114 mm
Carton size	74 x 42 x 22 cm
Lifetime	30,000 hours
Quality warranty	5 years
Certificates	CE ROHS, LVD, EMC, FCC, SAA, CB, ISO9001

Product manual

1.Novel design ,industrial style,ultra-thin design,light product weight.

2.Adopt new materials with surface protection,strong corrosion resistance.

3.Adopt 1070 high thermal conductivity aluminum plate,can quickly lead away heat.

4.Stereo ventilation convection cooling,quickly take heat away from the lamp.

5.Separating lamp body from LED Driver,Keep low temperature of LED Driver for longer lifespan.

6.Adopt stamping,Hydraulic pressure and spinning technology.

7.Light efficiency reaches 120-160LM/W.

8.IP65.

Product Details

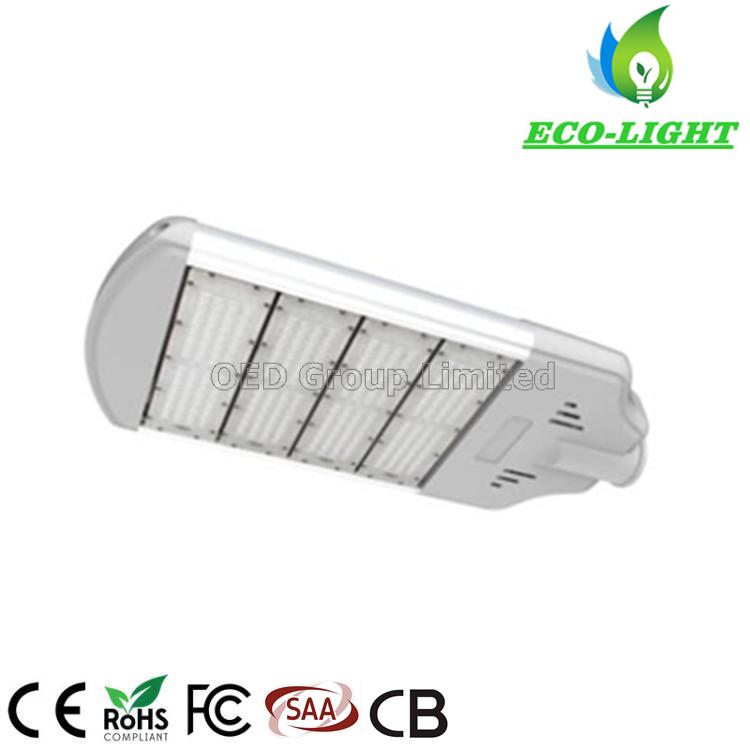

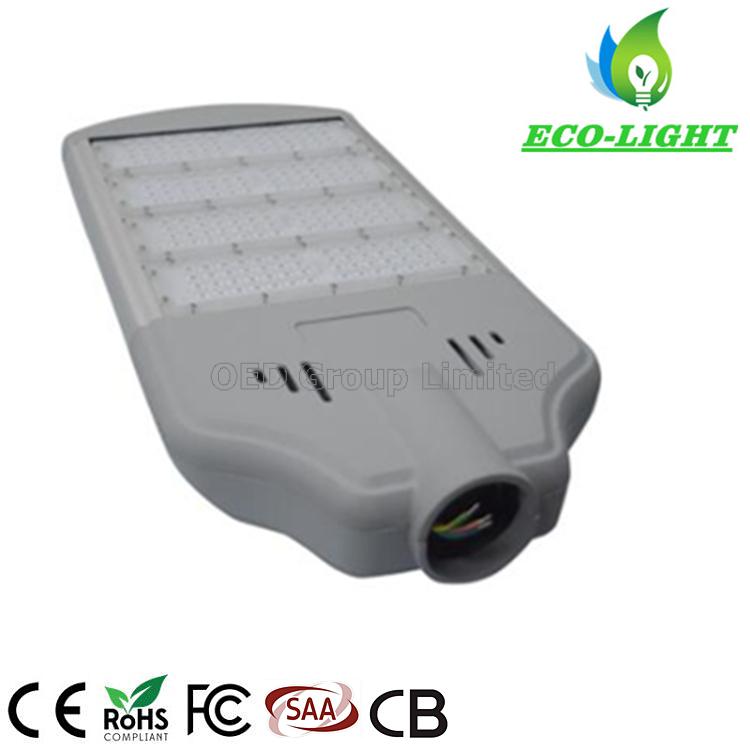

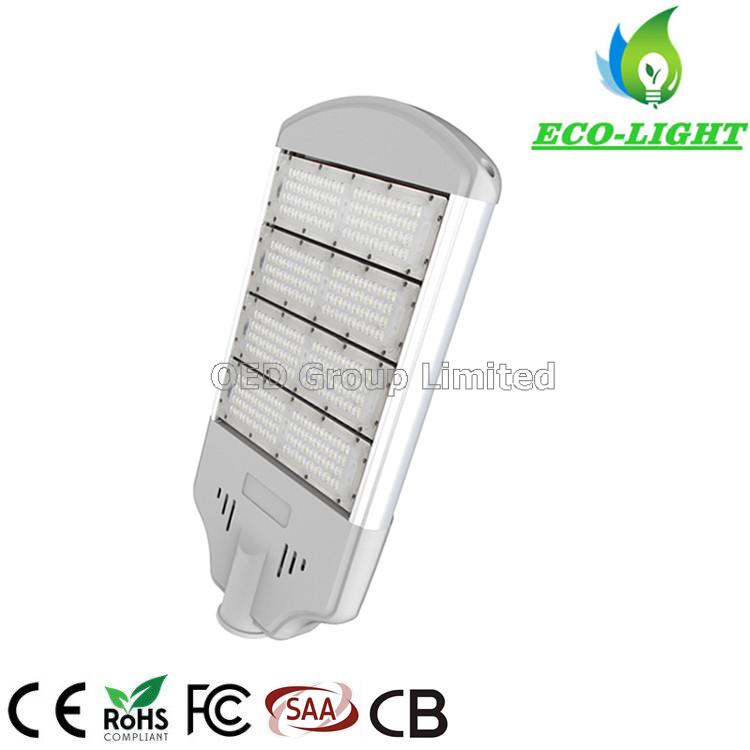

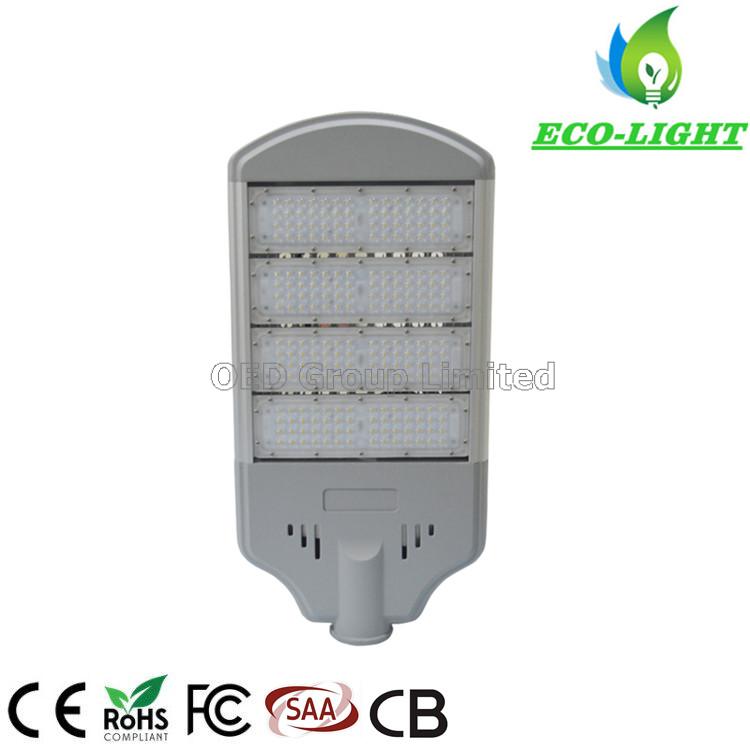

200W LED module street light

High brightness Filips 256PCS 3030 Chip + MEANWELL Driver. Stable voltage, bright and not dizzy, lifespan is more longer.

Die-cast aluminum

High-purity die-cast aluminum with high gloss, abrasion and scratch resistance.

MEANWELL power supply

steady power current

prolong the lifespan more than 30,000 hours

stable and durable

Multiple wattages to choose from

50W 100W 150W 200W 250W for choose.

Application

Swidely used in Trunk Road,Highways,Elevated Roads,Urban Streets,Overpasses,Sidewalks Road,and Square,Education institution,Ressidential Areas,Industrial Areas,Parks and other outdoor lighting.
