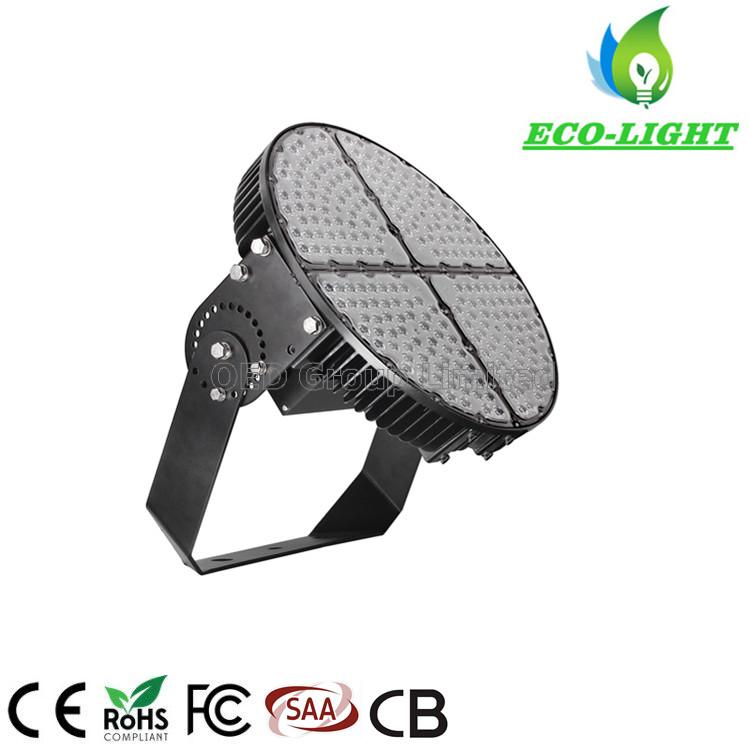

Shenzhen factory direct outdoor waterproof LED 300W module SMD round stadium light

  • Product Item:OED-SP4-300W
  • Category:Round high mast flood light
  • Views:1146
  • Watt: 300W
  • Efficiency: 160LM/W
  • Driver: MW or Inventronics
  • Warranty: 5 years
  • Product Manual:Shenzhen factory direct outdoor waterproof LED 300W module SMD round stadium light
BASIC INFO

Shenzhen factory direct outdoor waterproof LED 300W module SMD round stadium light

Technical data:

Item name 300W SMD LED stadium flood Light
Power 300W
Light Source Lumileds 5050
LED Qty 240 pcs
Input Voltage AC 85~305V   50/60Hz
Color Temperature 2700-6500K
Light effect 160LM/W
Lumen 48,000LM
PF ≥0.95
CRI Ra.≥80
IP grade IP65
Viewing angle 10°  25°  60°
Materials Die-casting aluminum
Operating Temp. -40ºC to +60ºC
Applications Stadium,outdoor lighting,  Square,Football field,etc.
Qty / CTN 1PC
N.W. 15.6KG
G.W. 17.1KG
Lamp dimensions Φ490×330mm
Carton size 64 × 51 × 25cm
Lifetime 50,000 hours
Quality warranty 5 years
Certificates CE,ROHS, EMC, LVD, ISO9001

Product manual:
1.LED stadium light adopts Lumileds 5050 Lamp beads, energy saving and environmental protection, high brightness and long life.
2. Using Aluminum material cold forging material shell, the surface is subjected to special oxidation treatment and heat conduction treatment to improve the heat generated by the lamp board and the power source of the lamp, which can be quickly exported to the outside the lamp, life expectancy 50,000 hours.
3. Constant current supply, high efficiency, low heat, high constant current accuracy.
4. Unique structure, high efficiency and energy saving, green and environmental protection.

IP65 300W LED stadium Light Dimensions:

stadium light size.jpg

Features:
1. Aluminum material, the light with narrow beam angle can be more focused and goes more far away.
2. Waterproof IP65 rating is applicable to outdoor.
3. Optical PC lens material, 10 / 25 / 60 beam angle can be optional.
4. 5050 chips, superior efficiency, lumen effect reach 160 LM/W, 50,000hours lifespan.
5. Every unit independent heat sink design increase air contact and area, which makes better ventilstion and heat dissipation.
6. IP65 waterproof, 10KV surge protection,Wide input voltage AC85-305V,Offering superior performance and reliability.
7.Driver cover,protect drivers and make better in heat-dissipation.

Application:
Applicable to Olympic football stadium, Olympic stadium, port, dock, large park leisure venues.

LED stadium application.jpg

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

contact us OED.jpg

Our workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 5-10 days for 50pcs LED stadium lights, and 20-25 working days for 500pcs LED stadium lights at common requirements.


Packing & Aging test :
Each Lamp must pass 24 hours aging test and high voltage surge test before we make packing and make delivery.


Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 8 production lines meet your shipping requirement;
5. Export port Shenzhen,Guangzhou;
6. Discount available for bulk order;
7. High quality component and material, Lumileds or Bridgelux 3030SMD, 5050SMD LED chips, MW / Inventronics / Sosen driver etc, depend on your needs.
Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
L/C, western union, order online by Made-in-china or Alibaba etc.
NO O/A.
Delivery time:
Samples and less than 50pcs in 5-10 working days;
200pcs in 10-15 working days;
500pcs in 25 working days.
About Shipping:
Samples sent by DHL, TNT, FedEX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 5-10 days for samples at common requirements, and 20-25 days for big order such as 500pcs stadium light.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this stadium light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
