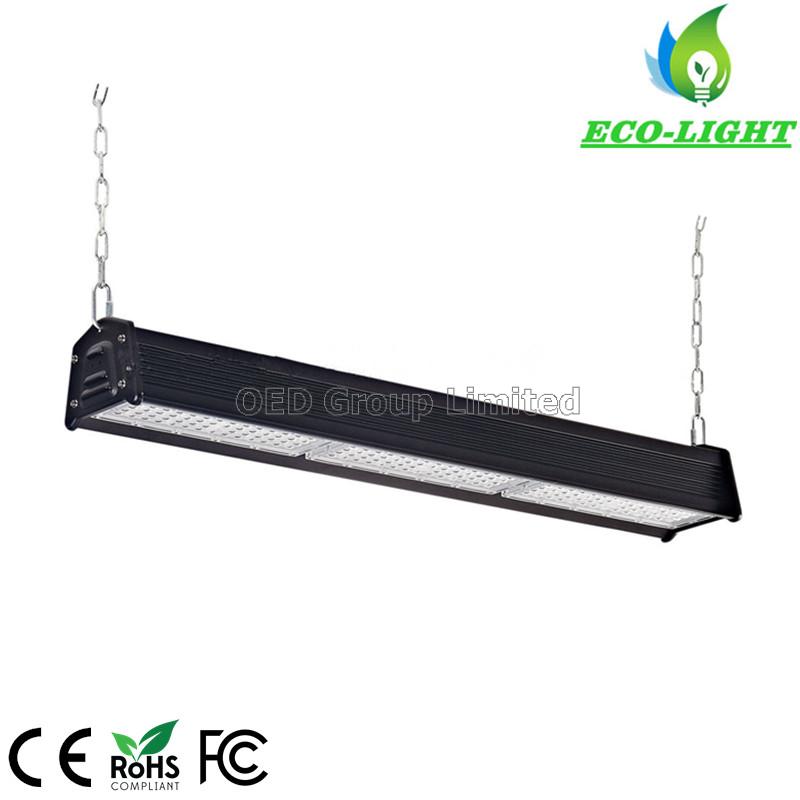

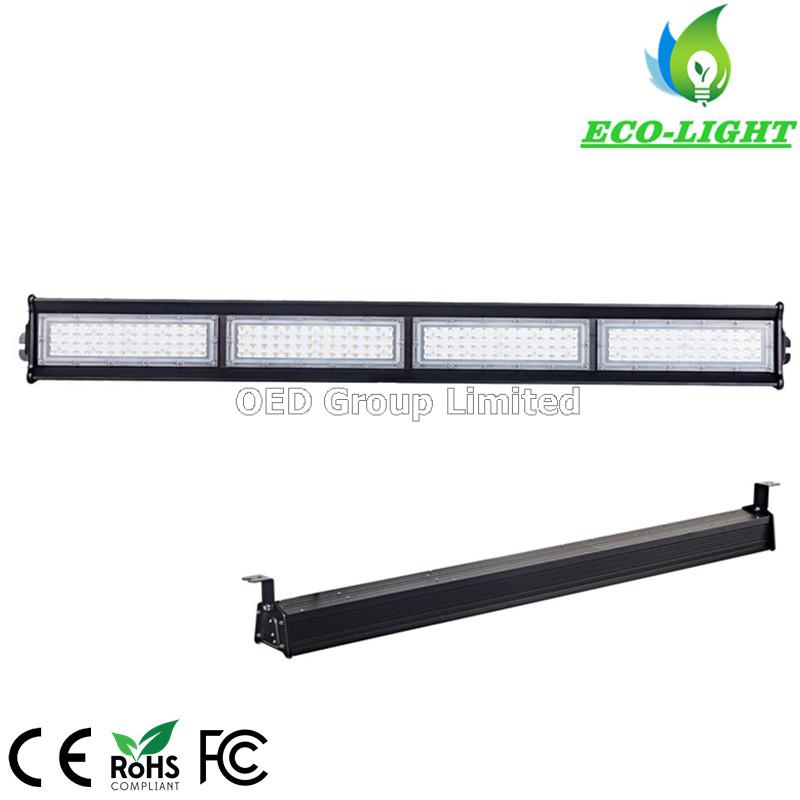

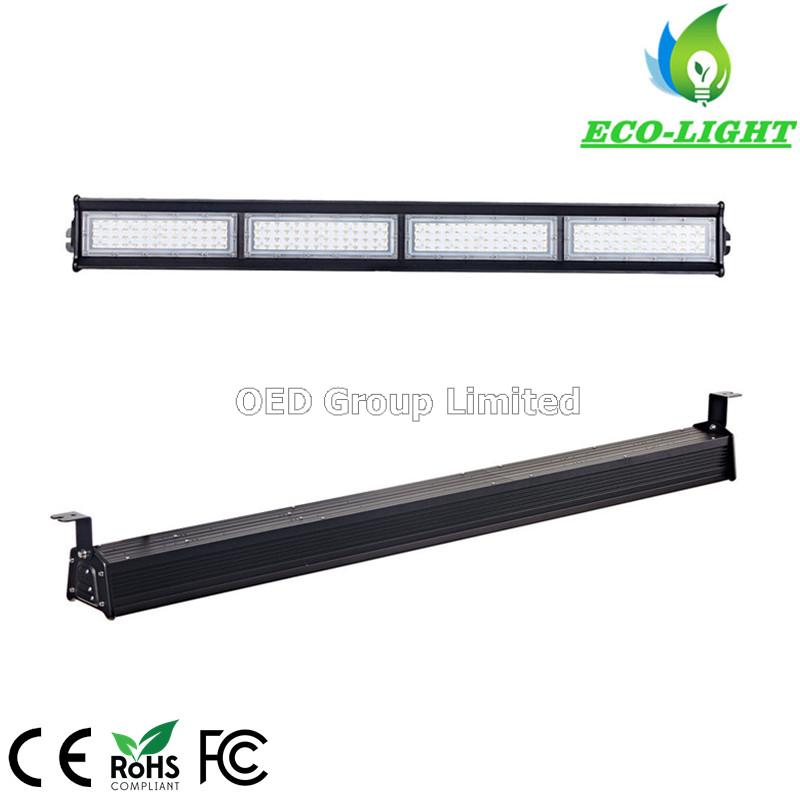

5 years warranty black aluminum meanwell driver 150w led linear highbay lamps

  • Product Item:OED-SD4-150W
  • Category:LED Linear Light
  • Views:87
  • Black aluminum
  • Meanwell driver AC100-277V
  • 130LM/W Philips chip
  • 5 years warranty
  • Product Manual:OED-SD4-150W black aluminum meanwell driver 150w led linear highbay lamps
BASIC INFO

5 years warranty black aluminum meanwell driver 150W led linear highbay lamps



LED Linear Highbay Light 4f IP65
200W @ 4ft, 150W @ 3ft, 100W @2ft, 50W @ 1ft, 250W@5ft, 300W, 400W, 500W
AC100-277V / 50-60Hz Meanwell driver
Aluminum alloy
Beam angle: 30 / 60 / 90 / 30x70/ 70x140 / 60x120°
5 years warranty



Main Technical data:

Item Number OED-SD4-150W
Input voltage AC100-277V / 50-60Hz
Power consumption 150W
Power factor PF.>0.95
CCT WW 2700-300K, NW 4000-4500K, 5000-5500K, CW 6000-6500K
Luminous flux 130LM/W
LED Type 3030SMD, Brand Chip
CRI > 80Ra.
Beam angle 30 / 60 / 90 /30*70 / 70*140 / 60*120°
Main materials 6063 Aluminum
Working temperature -20 to +50 celsius degree
Lifetime 50,000 hours
Quality warranty 5 years
Certificates CE, LVD, EMC, RoHS, FCC, TUV, ISO9001





Product Features:
1. Thicker aluminum radiator, insure better heat management.
2. Clear or frosted Plastic cover, high transmittance and flexible for safe deliver.
3. Meanwell driver, AC100-277V / 50-60Hz.
4. Brand 3030 LED chip, with whole lamp at 130LM/W.
5. Energy Savings, saving 60-70% more energy compare with traditional light source.
6. Long lasting, more than 50,000 Hours working lifetime.
7. Eco-Friendly, no any harmful radiate spectrums such as UV or infrared ray included.
8. CE, LVD, EMC, RoHS, FCC, TUV listed.


Applications:
Underground garage, parking lot, household, shool, hospital, office, workshop, supermarket, Outdoor Adevertisement Light Box, etc.

tube application.jpg

Note:
1. Keep power off before installing.
2. Remove the ballast and starter of former fluorescent tubes.

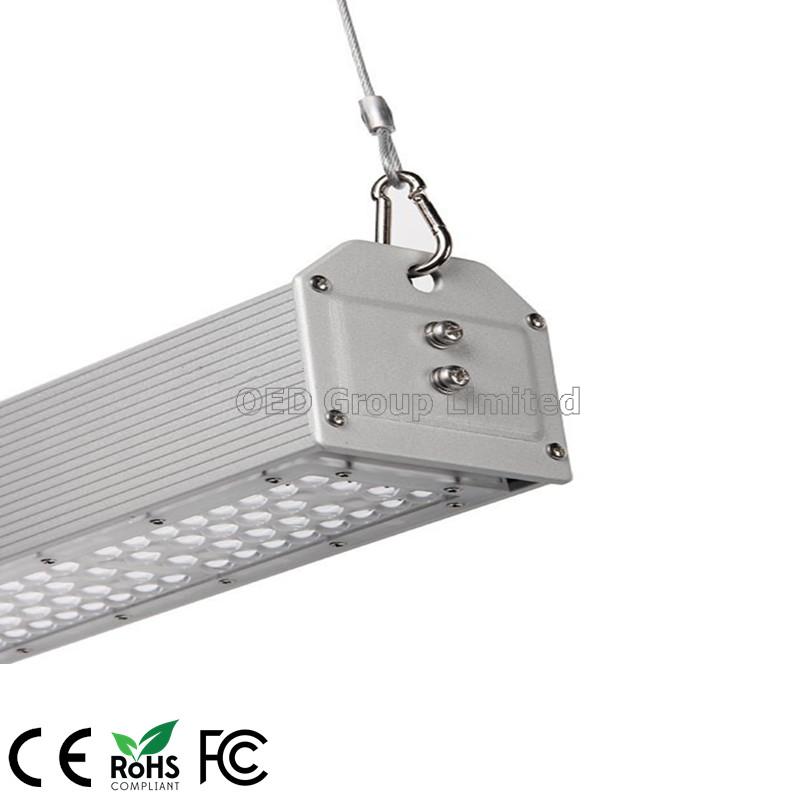

3. Fix the suspending ropes or screws on the ceiling, connect cables and put the LED lamp into the fixture.
4. Turn on the power and installation finished.

5. Two installation methods:

linear highbay.jpg

two installation.jpg



Packaging & Delivery:
Delivery Detail: 3-5 days for sample order, 12-15 working days for 300-500pcs.
Packaging Detail: Foam and export box for each lamp, lamp and box can be with your label.
One / export carton.  Size: 90 x 18x 13CM, G.W. 4.3KG.





Our Service:
1.Reply your inquiry in 24 working hours.
2.Customized design is available, support OEM and ODM.
3.Offer the lowest price with high quality LED light speedly.
5.Payments: T/T, Westtern Union & Paypal. Big order 30% in advance acceptable.
6.Lead time: 3-5 working days for samples, 12-15 working days for 3000pcs.
7.Warranty time: 3years. We provide free repairing service for any defectives during warranty period. And will offer a new replacement with the next order if the item can't be repaired.


Aging test:
Each LED lamp must pass min. 24 hours aging test before packing and delivery.



Shipping:
Express: Fed Ex / UPS / TNT/ DHL/ Aramax / Epacket / Dubai Airline/ Aus. Airline etc.
By Sea to your nearest seaport / By Air to your nearest Airport.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 1000pcs LED linear lights.

4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led linear light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
