3 Years or 5 years Warranty 130LM/W 100W LED Gas Station Light

  • Product Item:OED-GS100W
  • Category:Gas station canopy light
  • Views:864
  • 100W LED light for gas station
  • Embedded LED light
  • Gas station lighting 100w
  • light for gas station
  • Product Manual:100W Embedded Module LED Gas Station Light with 3 Years Warranty
BASIC INFO

3 years or 5 years warranty 100W embedded or surface mounted LED Gas Station Light 130LM/W

Technical data:

Item name 100W LED Gas Station Light
Power 100W
Light Source Lumileds 3030 SMD
Input Voltage AC85-277V / 50-60Hz
Light effect 130LM/W
Lumen 13,000LM
PF ≥0.95
CRI Ra.≥80
Defend grade IP65
Viewing angle 40x170°
Materials 6063 Aluminum & PC lens
Operating Temp. -20ºC to +50ºC
Applications Gas station, workshop, warehouse, dock,stadium,etc
Qty / CTN 1PC
N.W. 4.5KG
G.W. 5KG
Lamp dimensions 400 x 400 x 110 mm
Carton size 50 x 50 x 18 cm
Lifetime 35,000 hours
Quality warranty 3 years
Certificates CE,ROHS, EMC, LVD, ISO9001


Product Features:
1. Original Lumileds 3030 LED chip, lighting efficiency up to 130LM/W for finished lamp.
2. Meanwell power supply,SPD 6KV and IP67.
3. Excellent thermal performance.
Thermal conductivity: High-quality thermal stone grinding discs are used to tightly bond the aluminum substrate to the heat sink to ensure optimal thermal conductivity for each LED.
4. Module design
Maintenance and replacement are more convenient. The unique hollowed-out design between the modules optimizes dust-proof accumulation and self-cleaning.
5. Reliable protection performance
The high temperature and aging resistant silicone sealing ring combines the LED lens and the heat sink. The use of high-precision waterproof joints, waterproof effect up to IP66.
6. The perfect details of excellence
Anode oxidation of the radiator is more conducive to heat dissipation;
Electrostatic dusting on the surface of the outer casing is more conducive to corrosion resistance such as salt spray;
7. Thickened frame design to effectively protect the lighting components;
Smart structural design enables the lamp to be installed in multiple ways to meet different scene requirements.


Dimensions:

100W Gas station.jpg

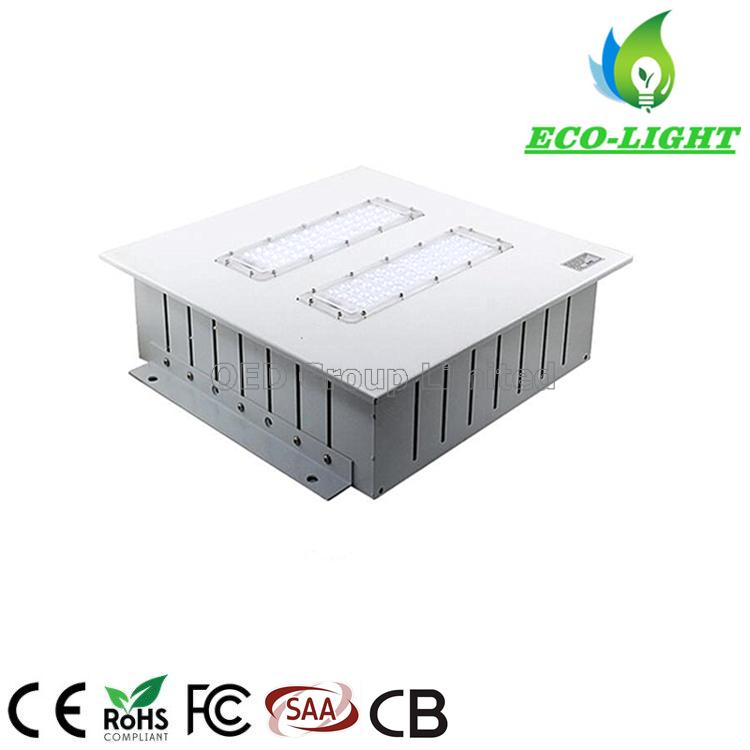

Product display:

led gas station .jpg

Product advantages:
1) The lamp body is formed by high-strength high-quality aluminum die-casting.
2) Use high transmittance tempered glass.
3) PC optical lens is used to meet various light distribution functions.
4) Using high quality silicone sealing ring, the protection of the lamp can reach IP65.
5) After the phosphating treatment of the surface of the lamp body, electrostatic spraying ensures the corrosion resistance and aging resistance of the lamp.
6) The LED chip adopts Lumileds of Philips to ensure high lumen and long life.
7) Use branded LED driver (Meanwell driver).
8) The structure design of the luminaire is reasonable to install and use.
9) Modular LED structure, stable light output, energy saving, and life expectancy of 35,000 hours.

Application:
Gas station, workshop, warehouse, factory, dock, stadium, etc.

LED gas station.jpg

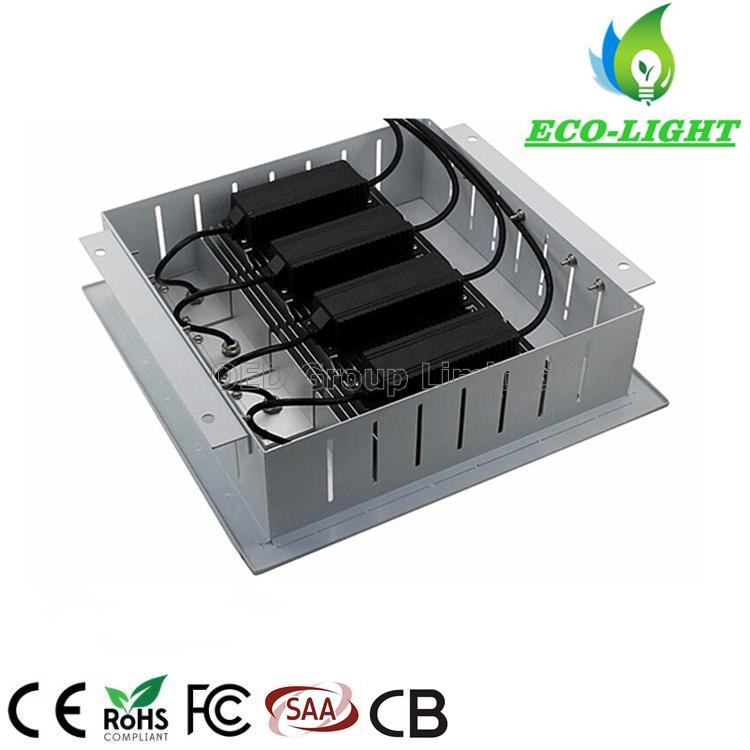

Show details:


Transportation and storage requirements:

1. The lamps are packed in cartons. They are not allowed to be subjected to severe mechanical shocks and exposure to rain during transportation. They must not be inverted to prevent falling, rolling and heavy pressure.
2. The luminaire should be stored in a cool, dry and clean environment with a storage temperature of -20 ° C ~ 50 ° C.

contact us OED.jpg

Our workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 10-15 days for 200pcs LED Gas station lights, and 20-25 working days for 1000pcs LED Gas station Light at common requirements.
Each Light must pass 24 hours aging test and high voltage (6KV) surge test before we make packing and make delivery.

led gas station.jpg

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 8 production lines meet your shipping requirement;
5. Export port Shenzhen,Guangzhou;
6. Discount available for bulk order;
7. High quality materials, Osram, Bridgelux or Lumileds 3030SMD LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.


Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
Delivery time:
Samples and less than 100pcs in 5-10 working days;
200pcs in 10-15 working days;
1000pcs in 25 working days.
