High Quality IP65 outdoor waterproof 50w SMD3030 LED module road street light

  • Product Item:OED-YXY-MZ50
  • Category:Module LED Streetlight
  • Views:993
  • 50W LED street light
  • led street light 50w
  • led street light 50w outdoor
  • module for street light
  • Product Manual:High Quality IP65 outdoor waterproof 50w SMD3030 LED module road street light
BASIC INFO

High Quality IP65 outdoor waterproof 50w SMD3030 LED module road street light

Technical Data
Item name
LED module street Light 50W
Power
50W
Input Voltage
AC85-265V
Light Source
Filips Chip 3030 SMD LED
LED Qty
56pcs
LED Driver
MEANWELL Driver
Viewing angle
70°×140° deg
Color temperature
3000-6500K
PF
0.95
CRI
Ra.>80
IP
65
Materials
Die-cast aluminum
Lumen
6000LM
Temperature
-25ºC - +45ºC
Applications
street,road,highways,square,park,etc.
N.W.
3.2kg
G.W.
3.7kg
Qty / CTN
1pc
Lamp dimensions
L388 × W306 × H114 mm
Carton size
49 x 42 x 22cm
Lifetime
30,000 hours
Quality warranty
5 years
Certificates
CE ROHS, LVD, EMC, FCC, SAA, CB,  ISO9001
Product manual

1.Novel design ,industrial  style,ultra-thin design,light product weight.

2.Adopt new materials with surface protection,strong corrosion resistance.

3.Adopt 1070 high thermal conductivity aluminum plate,can quickly lead away heat.

4.Stereo ventilation convection cooling,quickly take heat away from the lamp.

5.Separating lamp body from LED Driver,Keep low temperature of LED Driver for longer lifespan.

6.Adopt stamping,Hydraulic pressure and spinning technology.

7.Light efficiency reaches 120-160LM/W.

8.IP65.

Product Details

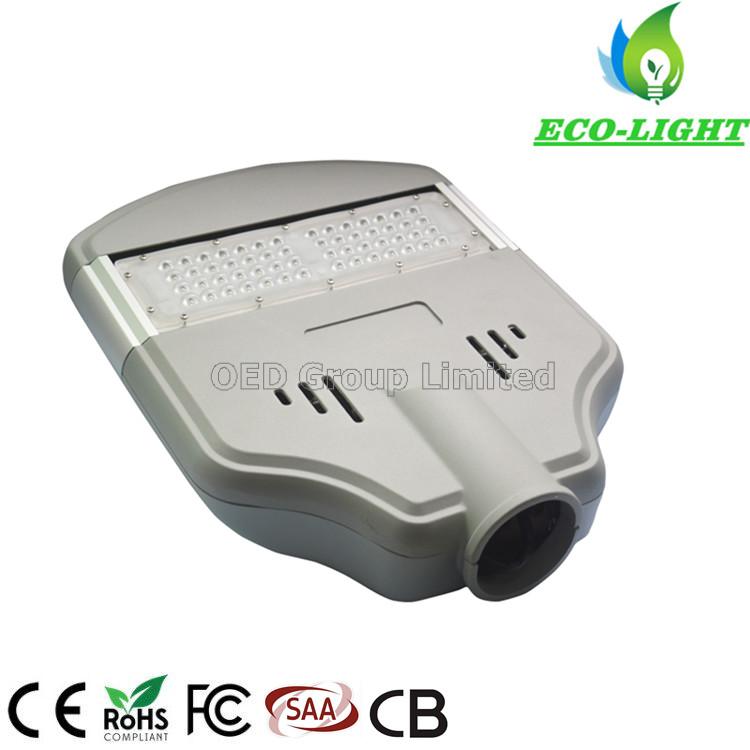

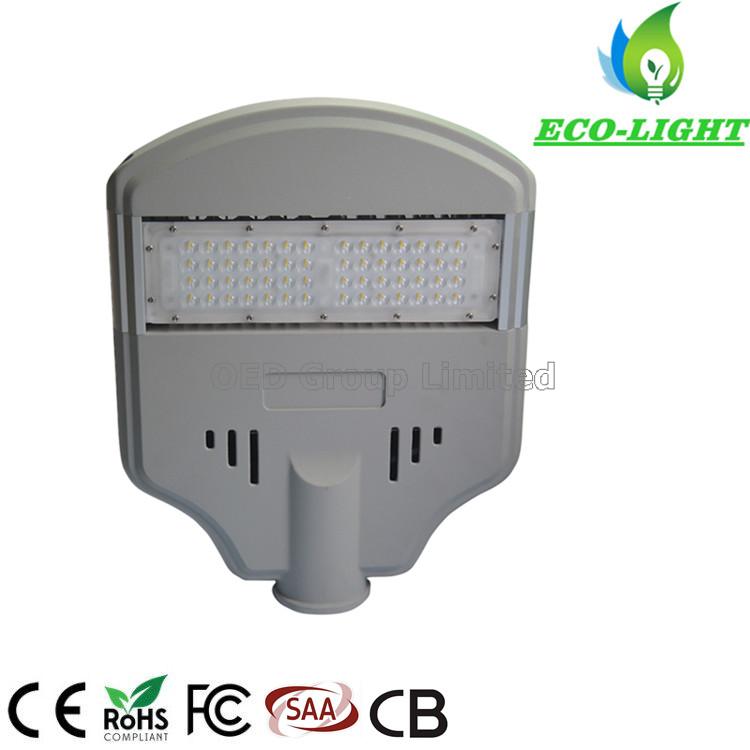

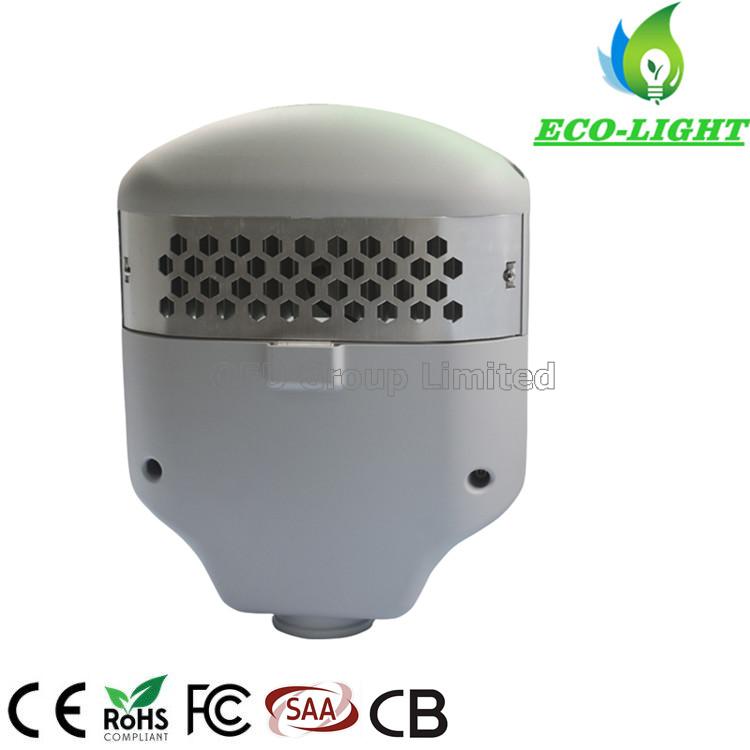

50W LED module street light

     High brightness Filips 56PCS 3030 Chip + MeanWell Driver. Stable voltage, bright and not dizzy, lifespan is more longer.

Die-cast aluminum

    High-purity die-cast aluminum with high gloss, abrasion and scratch resistance.

MEANWELL power supply

steady power current


prolong the lifespan more than 30,000 hours

stable and durable

Multiple wattages to choose from

 50W 100W 150W 200W 250W for choose.

Application

    Swidely used in Trunk Road,Highways,Elevated Roads,Urban Streets,Overpasses,Sidewalks Road,and Square,Education institution,Ressidential Areas,Industrial Areas,Parks and other outdoor lighting.
