IP66 Outdoor 10W LED RGB Lampscape Light with 3 Years Warranty From China

  • Product Item:OED-RGB-FL10
  • Category:KongKim LED Flood Light
  • Views:1483
  • Lampscape Light
  • RGB Lampscape Light
  • RGB lampscape lamps
  • LED Lawn Lamp
  • Product Manual:IP66 Outdoor 10W LED RGB Lampscape Light with 3 Years Warranty From China
BASIC INFO

IP66 Outdoor LED 10W RGB LED Landscape Light with 3 Years Warranty From China

IP66 IP Rating
LED RGB Flood Light 10W 20W 30W 50W 100W
SMD LED 3030 Epistar Chip, RGB LED Flood Light
CE  RoHS  SAA  CB  certification
Lifespan:35000H
3 years warranty

Techinical Data:

Item Name
10W IP66 RGB LED Landscape Light
Power
10W
Light Source
Epistar Chip 3030SMD LED
Lamp dimensions
129 x 99 x 44mm
Color temperatute
RGB
CRI
Ra.>80
PF.
0.55
Input voltage
AC85-265V / 50-60Hz
Materials
Die-casting Aluminum and tempered glass
Lumens
1,000 LM for white color
Lifetime
35,000 Hours
Quality warranty
3 years
Applications
Outdoor Lighting, Tunnel lighting, Lawn / square / Landscape / Square lighting
Case color
Black or grey Alu. with blue or black decoration
Inner box
yellow box with English word/ export carton
Item N.W.
0.52kg
Qty /CTN
30
Carton size/ G.W.
58 x38 x 18cm / 17.5KG
Certificates
CE, ROHS, LVD, EMC, FCC, SAA, CB, ISO9001


Features:
1. Ultra thin integration desion concept, ADC12 die-casting aluminum with work well at heat dissipaton, reduce the temperature difference and ensure the stablity during lifetime.
2. Epistar or Philips 3030 Chip, energy saving, environment protection, high brightness, excellent color rendering, the color of lighting objects are more realistic.
3. High efficiency isolated waterproof constant current driver, AC85-265V input voltage.
4. IP66 waterproof rating. Double waterproof design, thicker waterproof rubber ring to ensure the robust waterproof ability.
5. Lenghthened and strenghened the installing bracket, apply for more different places.
6. TUV, CB, CE, FCC, SAA, RoHS certification.



IP66 20W RGB LED Flood Light Structure:

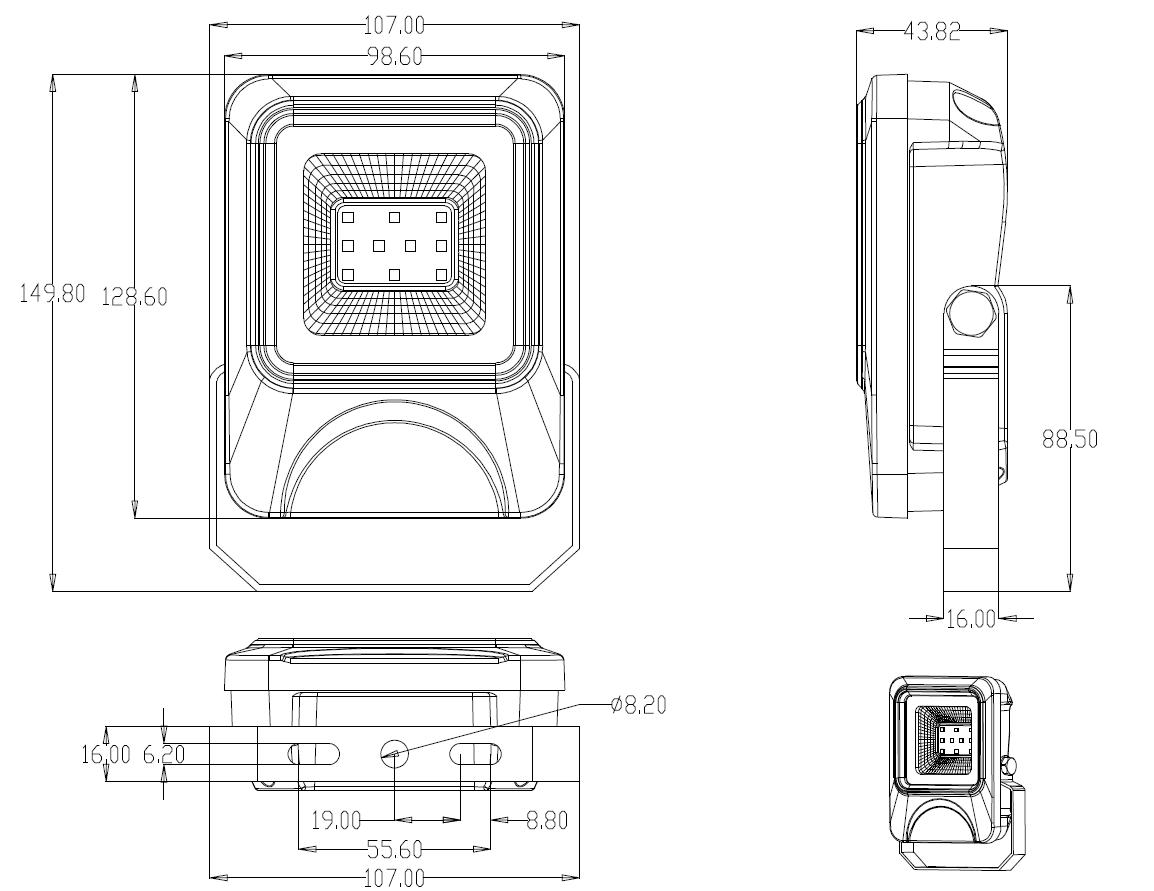

Dimensions drawing:

RGB Remote Control:

Instructions &
