IP66 Outdoor 20W LED RGB Lawn Lamp with 3 Years Warranty From China

  • Product Item:OED-RGB-FL20
  • Category:KongKim LED Flood Light
  • Views:1396
  • RGB Lawn Lamp
  • RGB Lawn Lamps
  • RGB Lawn Lighting
  • LED Lawn Lamp
  • Product Manual:IP66 Outdoor 20W LED RGB Lawn Lamp with 3 Years Warranty From China
BASIC INFO

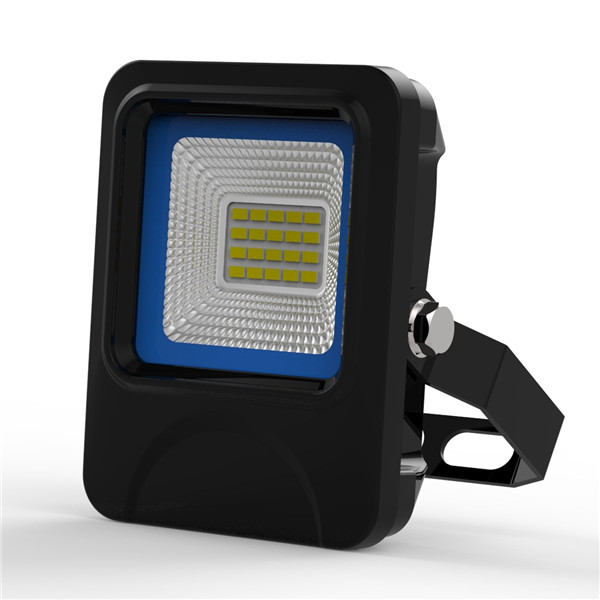

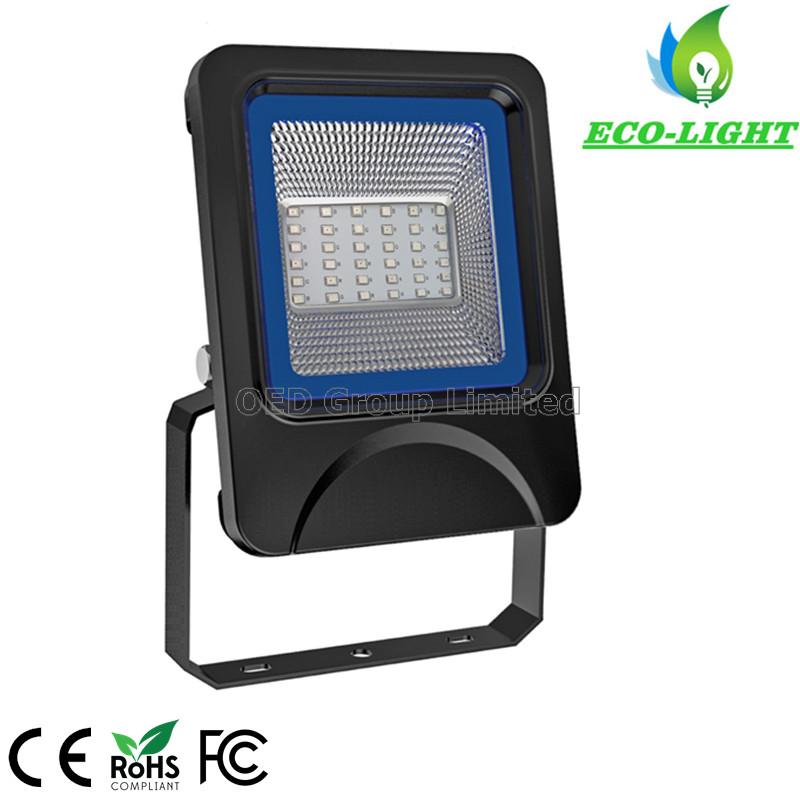

IP66 Outdoor LED 20W RGB LED Lawn Lamp with 3 Years Warranty From China

IP66 IP Rating
LED RGB Flood Light 10W 20W 30W 50W 100W
SMD LED 3030 Epistar Chip, RGB LED Flood Light
CE  RoHS  SAA  CB  certification
Lifespan:35000H
3 years warranty

Techinical Data:

Item Name
20W IP66 RGB LED Lawn Lamp
Power
20W
Light Source
Epistar Chip 3030SMD LED
Lamp dimensions
175 x 135 x 44mm
Color temperatute
RGB
CRI
Ra.>80
PF.
0.92
Input voltage
AC85-265V / 50-60Hz
Materials
Die-casting Aluminum and tempered glass
Lumens
2,000 LM for white color
Lifetime
35,000 Hours
Quality warranty
3 years
Applications
Outdoor Lighting, Tunnel lighting, Lawn / square / Landscape / Square lighting
Case color
Black or grey Alu. with blue or black decoration
Inner box
yellow box with English word/ export carton
Item N.W.
0.86kg
Qty /CTN
20
Carton size/ G.W.
60 x34 x22cm / 19.0KG
Certificates
CE, ROHS, LVD, EMC, FCC, SAA, CB, ISO9001


Features:
1. Ultra thin integration desion concept, ADC12 die-casting aluminum with work well at heat dissipaton, reduce the temperature difference and ensure the stablity during lifetime.
2. Epistar or Philips 3030 Chip, energy saving, environment protection, high brightness, excellent color rendering, the color of lighting objects are more realistic.
3. High efficiency isolated waterproof constant current driver, AC85-265V input voltage.
4. IP66 waterproof rating. Double waterproof design, thicker waterproof rubber ring to ensure the robust waterproof ability.
5. Lenghthened and strenghened the installing bracket, apply for more different places.
6. TUV, CB, CE, FCC, SAA, RoHS certification.

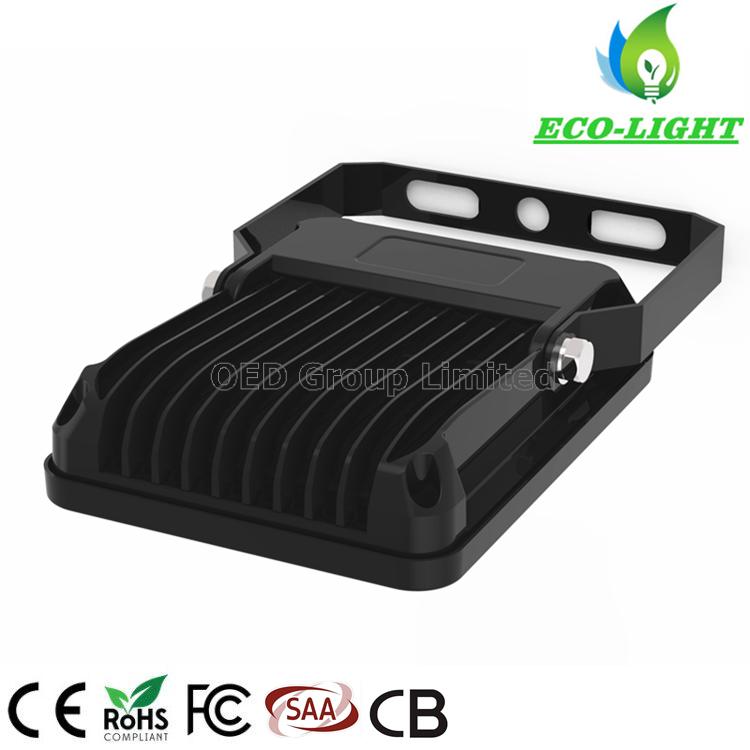

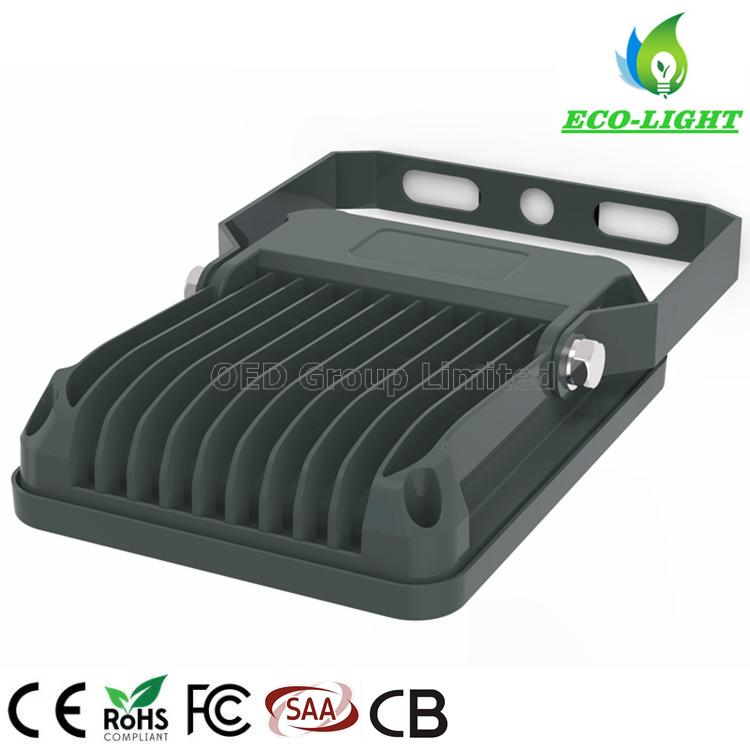

IP66 20W RGB LED Flood Light Structure:


Dimensions drawing:

RGB Remote Control:

Instructions &
