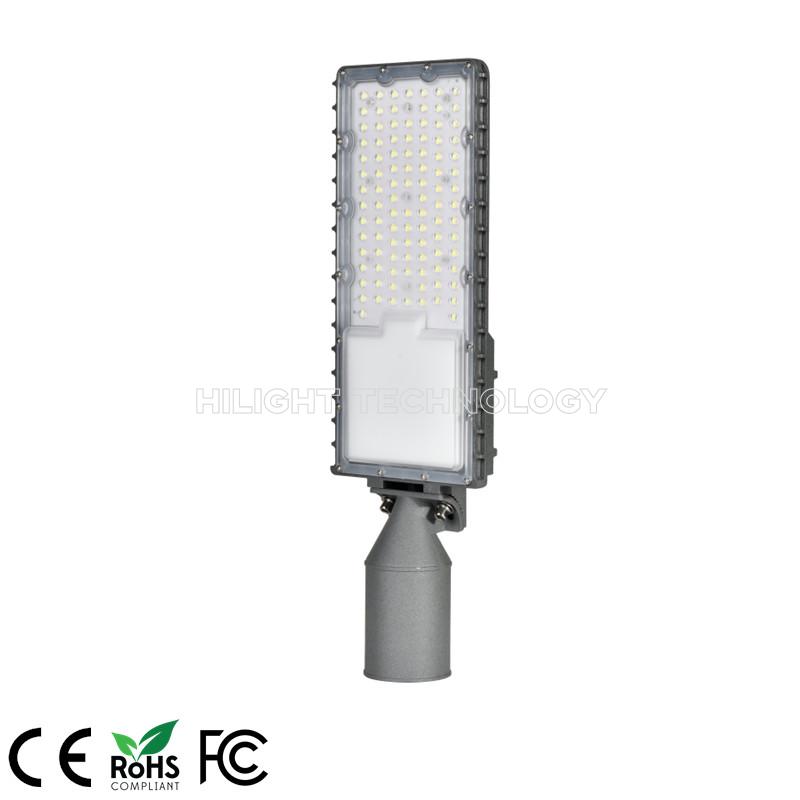

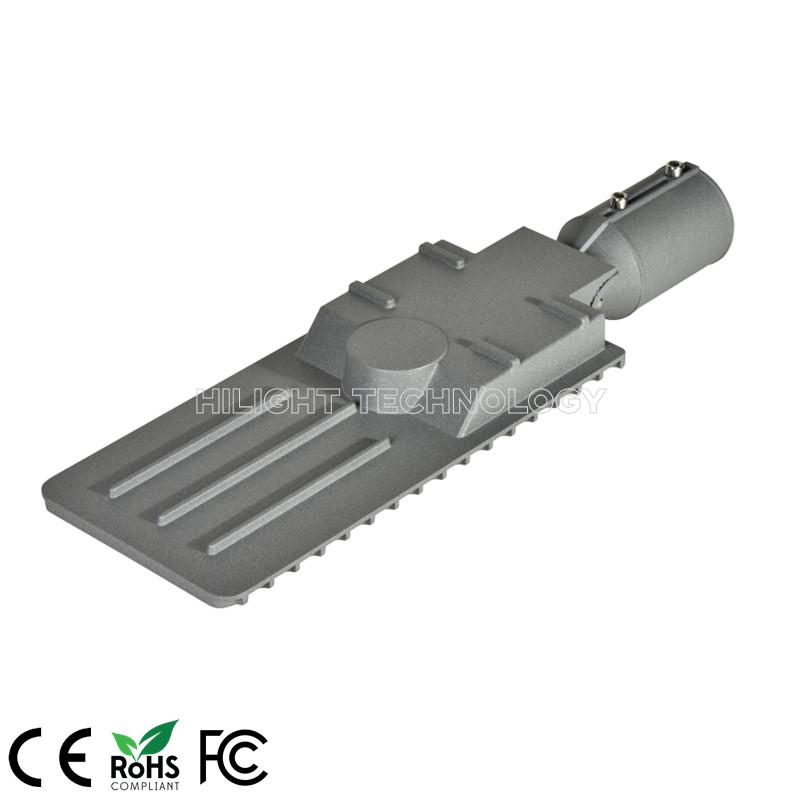

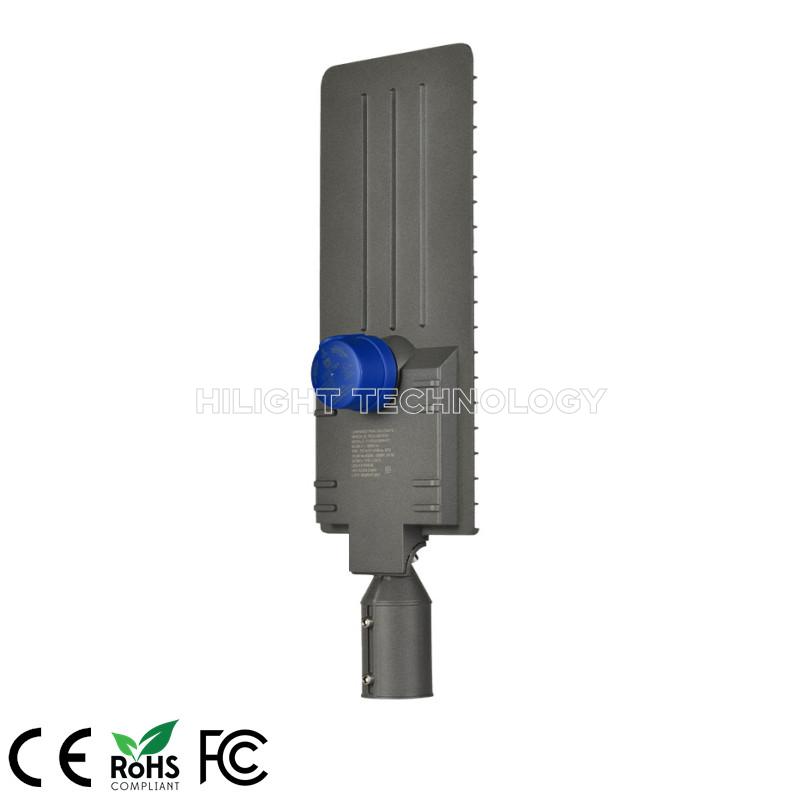

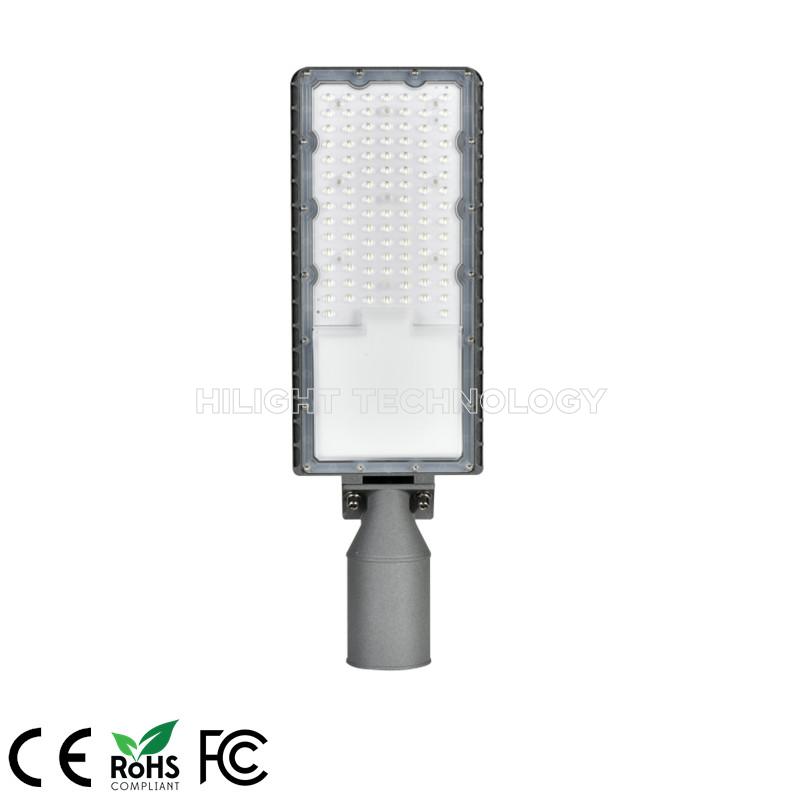

AC85-265V Isolated Driver 3 Years 100watts LED Road Light

  • Product Item:S1-100W
  • Category:Classic Streetlight
  • Views:710
  • Isolated driver
  • Input:AC85-265V
  • IP65 outdoor use
  • Warranty: 3 years
  • Product Manual:AC85-265V Isolated Driver 3 Years Warranty black Aluminum 100watts LED Street Lighting
BASIC INFO

AC85-265V Isolated Driver 3 Years Warranty black Aluminum 100watts LED Street Light

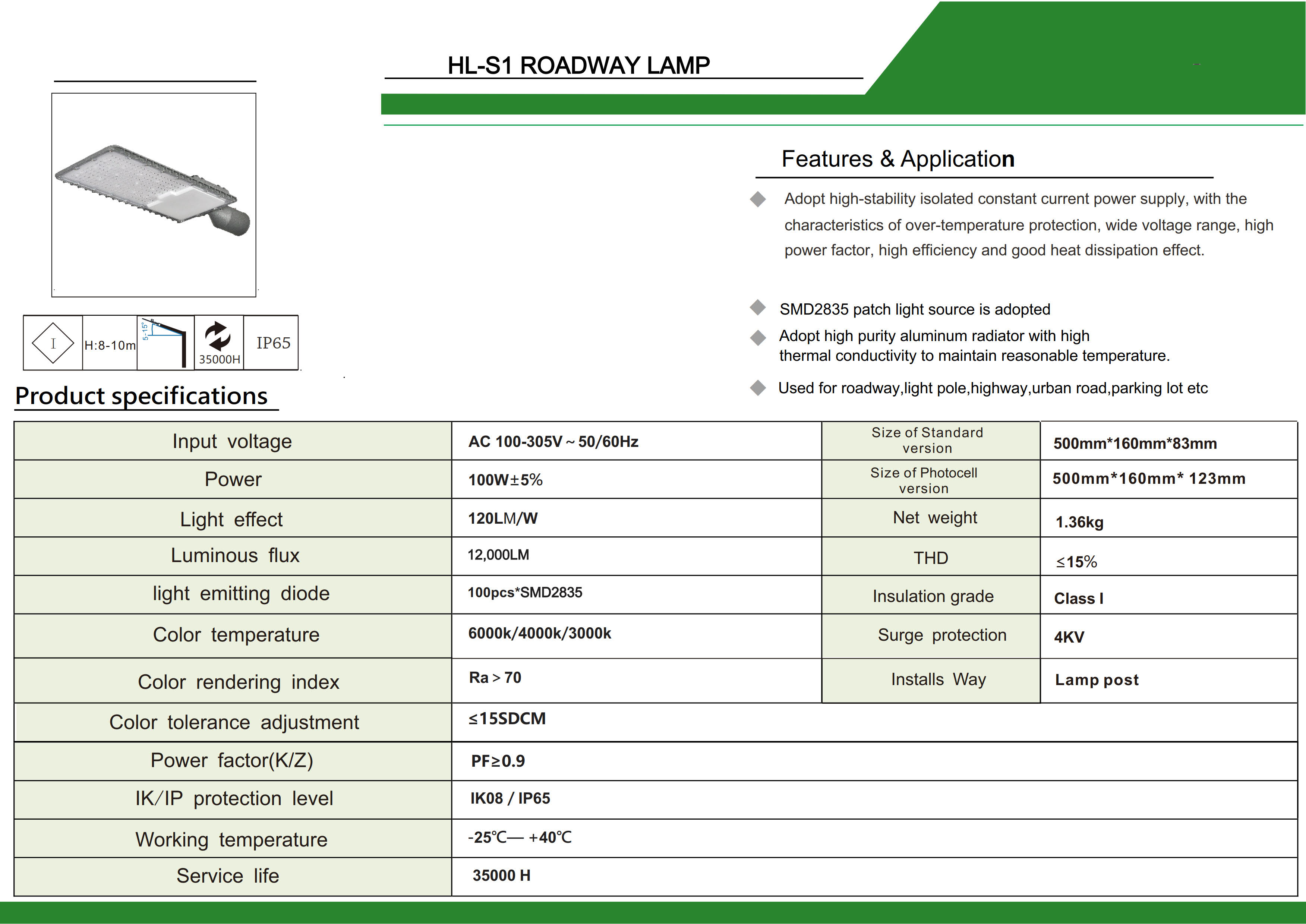

Main technical data:

Power consumption 100Watts
Input voltage AC85-265V / 50-60Hz
Driver type Isolated IC constant current driver IP67
Power factor >0.9
LED type Ultra-bright 3030SMD
Light efficiency 120LM/W
Lumens 12,000LM
CCT 3000K - 6500K
CRI >70Ra

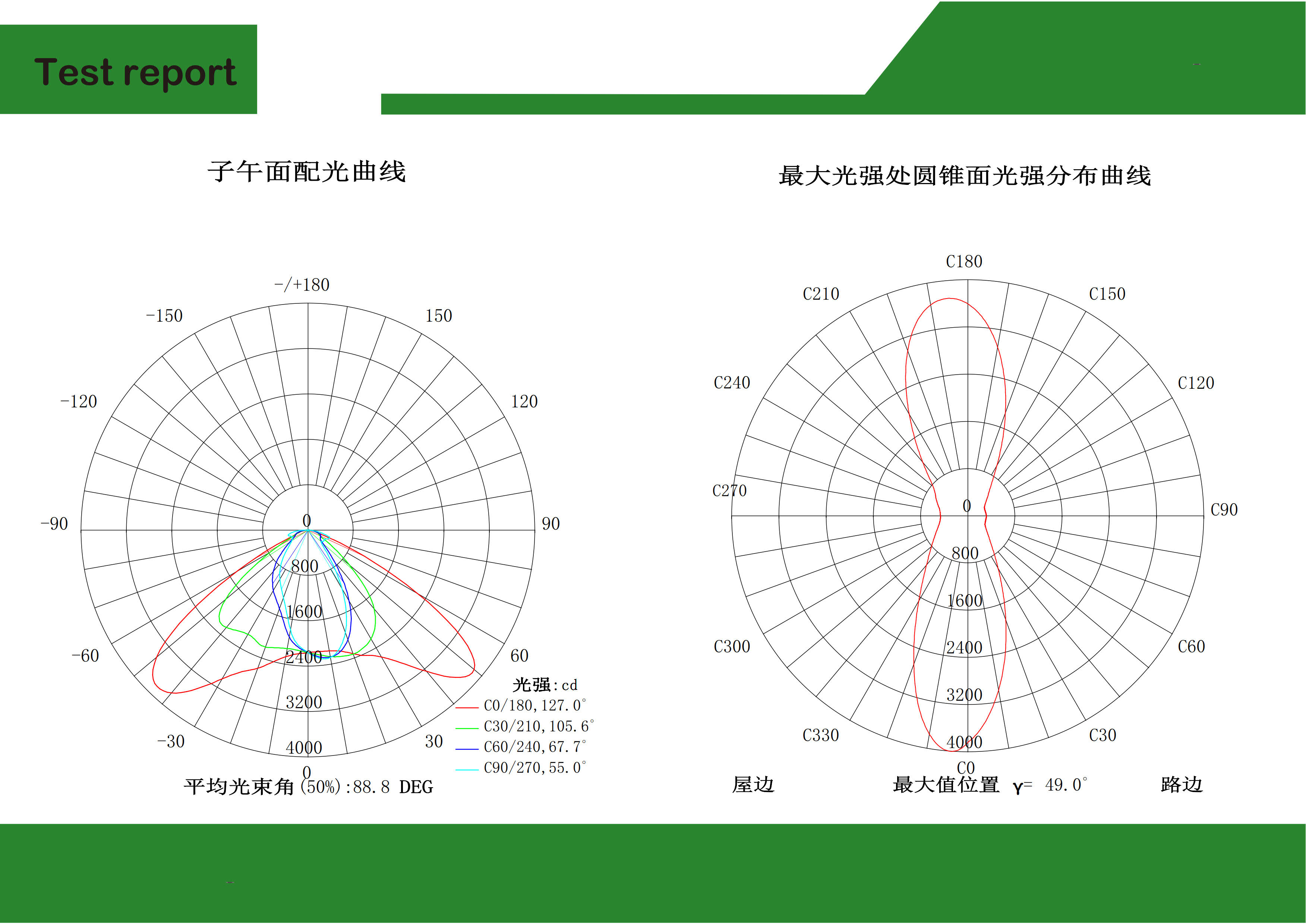

Beam angle 70 x 140°
Materials Aluminum / black finish & tempered glass
Defend IP65 for outdoor
Lifetime 50,000hrs
Warranty 3 years
Certitifcates CE, RoHS, LVD, EMC, ISO9001, SGS

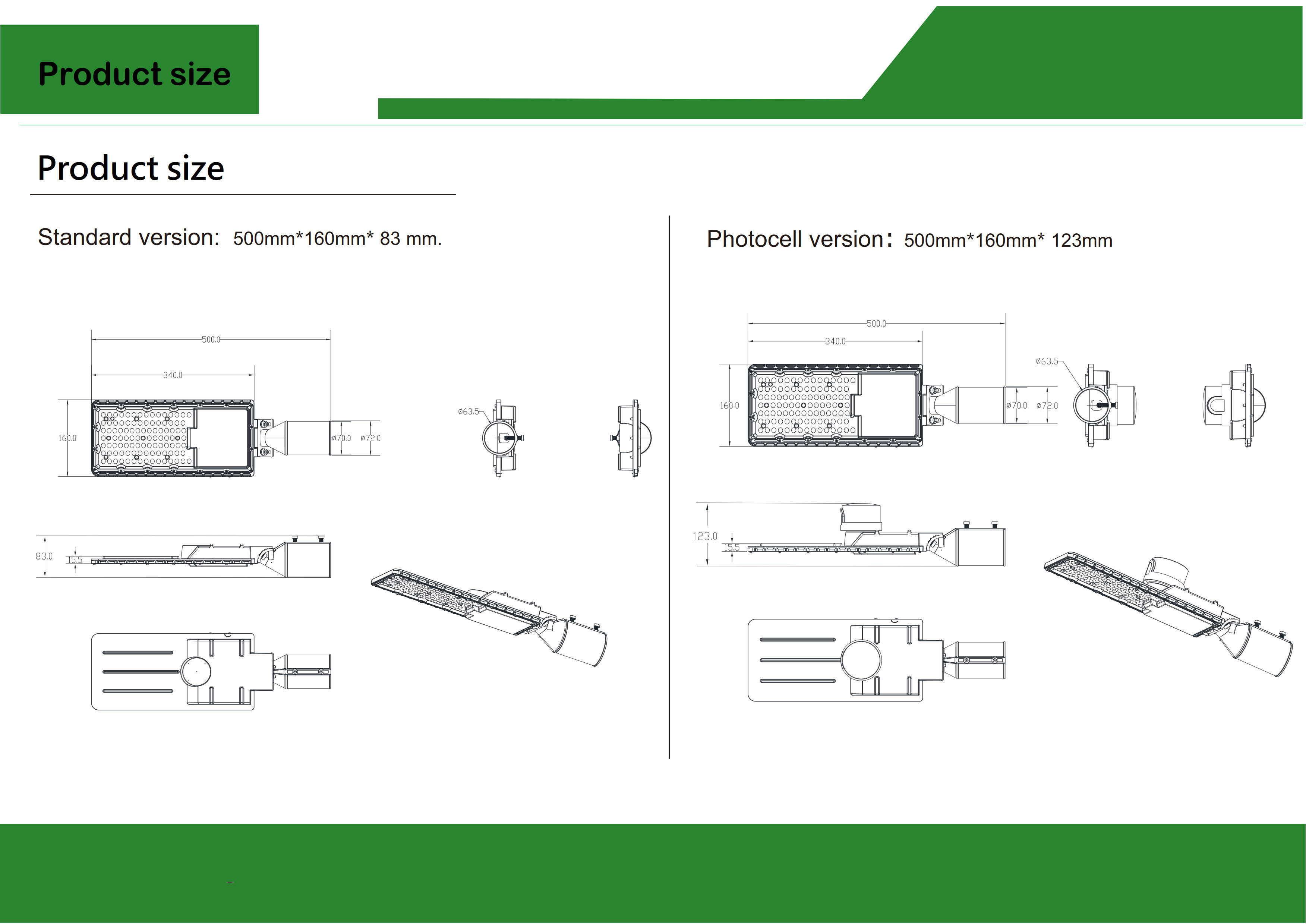

Lamp dimensions 500*160*38mm
Net weight 1.51KG

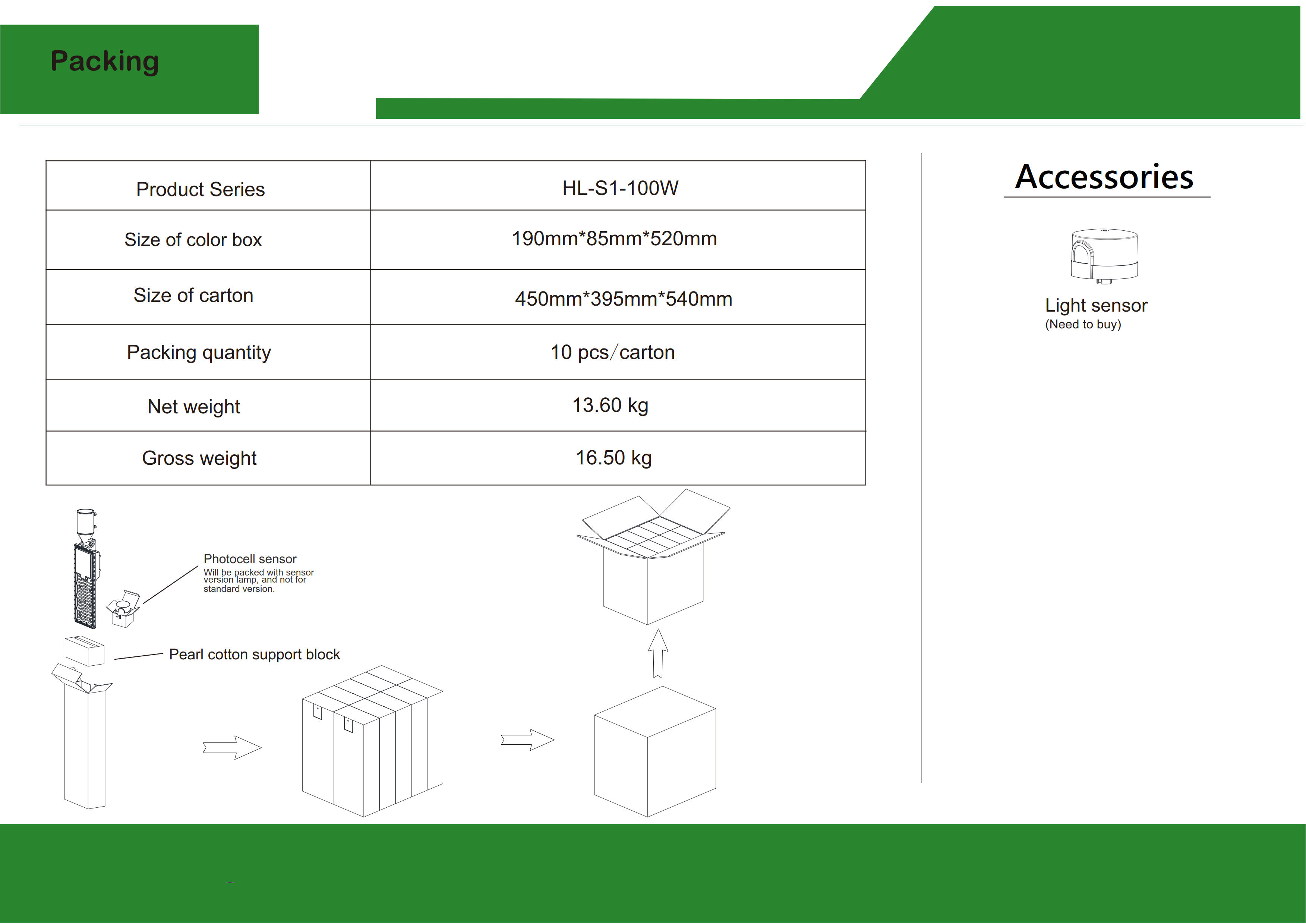

Packing 10pc/carton
Carton size 47*54*41CM
Gross weight 18KG
Other watts & main technical data:

Watts Dimensions Lumens CCT Defend Net weight Warranty
80W 500x160x38mm 9,600LM 3000K - 6500K IP65 1.51KG 3 years
100W 500x160x38mm 12,000LM 3000K - 6500K
IP65 1.51KG 3 years
120W 637x211x38mm 14,400LM 3000K - 6500K
IP65 2.25KG 3 years
150W 637x211x38mm 18,000LM 3000K - 6500K
IP65 2.25KG 3 years
180W 675x255x83mm 21,600LM 3000K - 6500K
IP65 3KG 3 years
200W 675x255x83mm 24,000LM 3000K - 6500K
IP65 3KG 3 years
250W 783x260x83mm 30,000ML 3000K - 6500K
IP65 3.65KG 3 years
