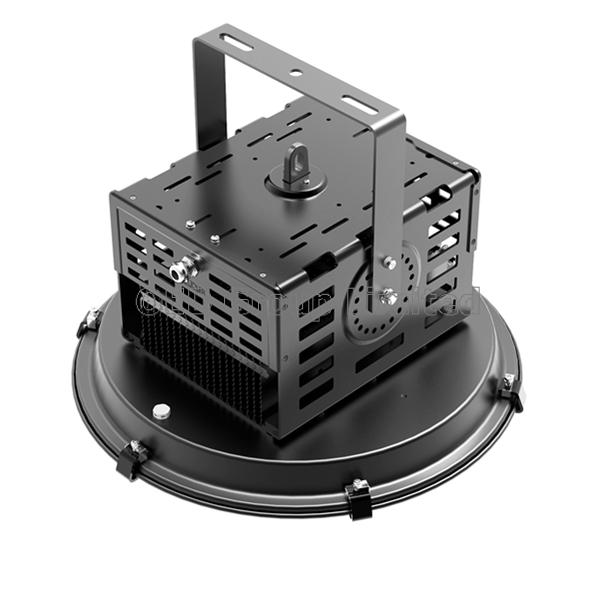

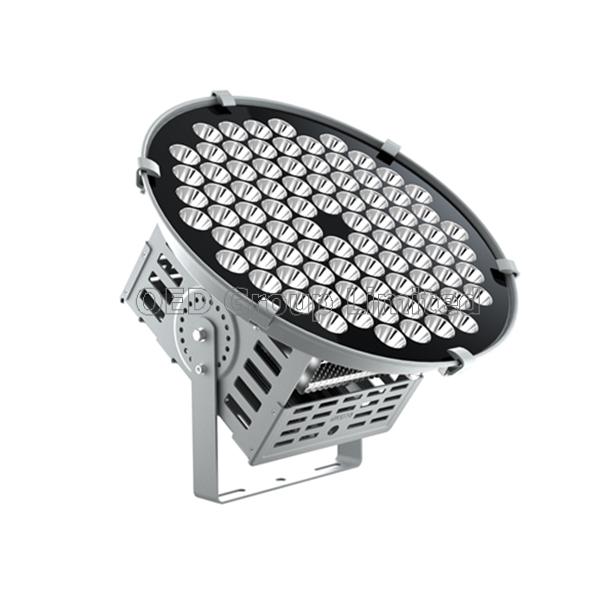

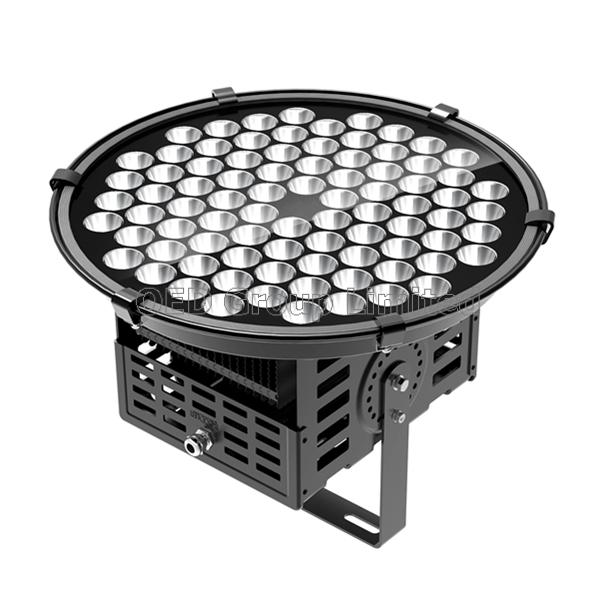

Meanwell Driver and XML2 LED Chip 250W LED Spot Light Fixture

  • Product Item:OED-PR250W
  • Category:LED Projector
  • Views:1559
  • 500W LED Light Fixture
  • 250w spot light
  • 250w spot lighting
  • 250w led spot light
  • Product Manual:250W LED Projector Light Fixture with MW Driver and XML2 LED Chip
BASIC INFO

250W LED Projector Light Fixture with MW Driver and XML2 LED Chip


Main parameters:

Watts: 250W
LED Type: XTE 84PCS
Dimensions: D.484 * H.361mm
Beam angle: 15° / 30° /  60°
Power factor (PF):  0.95
CRI. >80Ra
Powers available: 250W / 500W
Input voltage: AC95-305V, 50-60Hz

Lamp Driver: MW-ELG-240W-48A
Diver efficiency: >85%
Harmonic distortion (thd): < 10%
LED efficiency: 100 LM/W
Initial LED lumen: 25,000LM


Related color temperature(cct):
Cool white: 6000- 6500K, pure white: 4000-4500K, warm white: 2700 - 3000K
Other available color: Red, yellow, blue, green, amber, RGB, RGBW
Distribution of the light: LED+ secondary distribution of the light reflector
The curve of light distribution: Symmetric expression/circular glare


Protected grade: IP65
Working temperature: -20 ~ 50º C
Working humidity: -10 ~ 90%rh
Storage temperature: -25 ~65º C
Materials: Aluminum+super thoughed PC cap with high efficiency transmittance
Lifespan: > 50, 000 hours


Application:
Landscape, Building, Tunnel, Sports field, workshop, warehouse, toll station, gas station, supermarket, gym, exhibition hall, public lighting places


Products advantages:
1. XTE LED & Meanwell Driver with 5 years warranty.
2. Good heat dissipation, large & better heat dissipation design.
3. High purity aluminum with Fins reflector with high reflecting efficiency.
4. New high efficiency constant current driver, wide range of input voltage.
5. Energy-saving, environmental-friendly and long lifespan of 50, 000hours.
6. Convenient for installation, environmental protecting, almost free-maintenance.
