With MW Driver and XML2 LED Chip 500W LED Spot Lighting Fixture

  • Product Item:OED-PR500W
  • Category:LED Projector
  • Views:946
  • 500W LED Projector Light
  • Meanwell Driver
  • XML2 LED Chip
  • 500w spot light
  • Product Manual:500W LED Spot light LED Projector Lighting Fixture with MW Driver and XML2 LED Chip
BASIC INFO

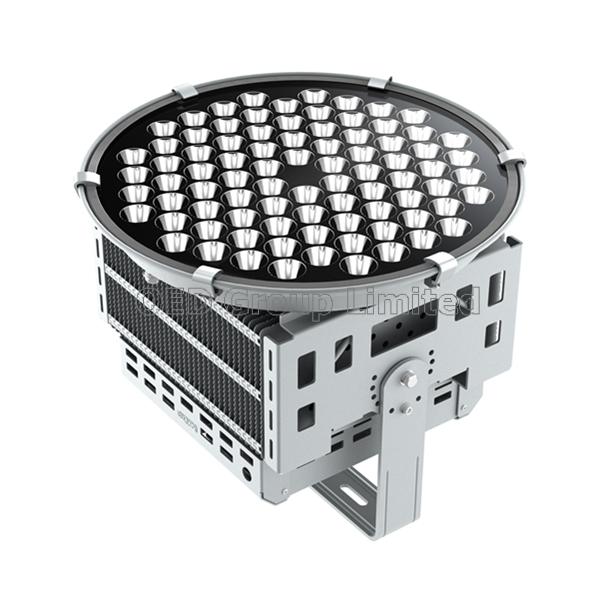

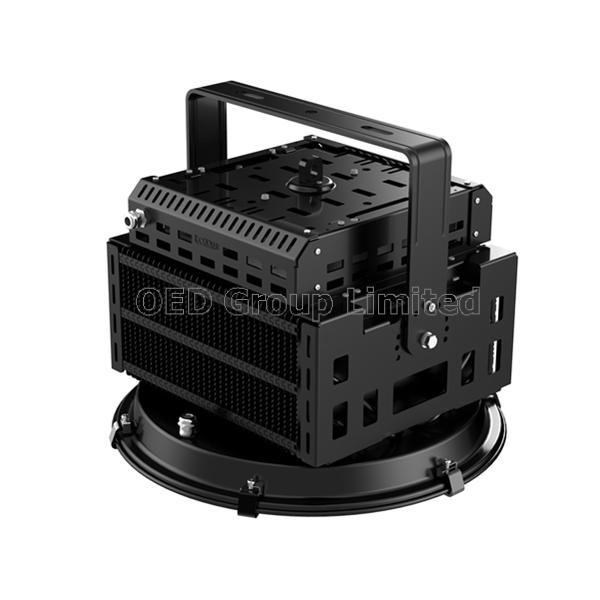

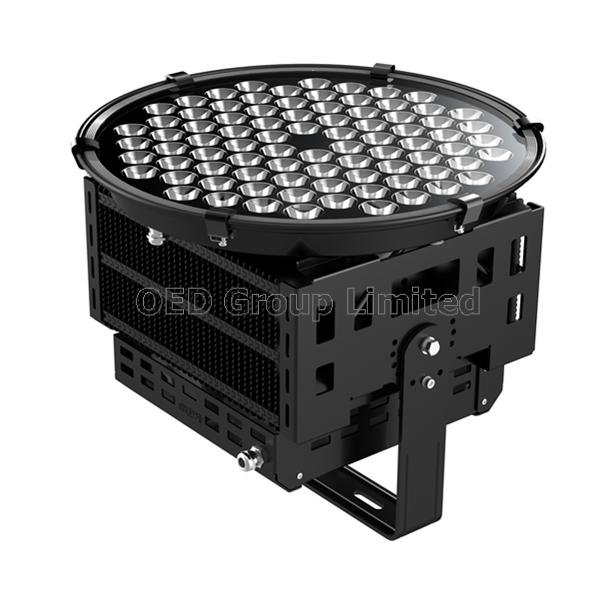

500W LED Projector Lighting Fixture with MW Driver and XML2 LED Chip


Main parameters:

Watts: 500W
LED Type: XML2 LED 84PCS
Dimensions: D.479* H.390mm
Beam angle: 15° / 30° /  60°
Power factor (PF):  0.95
CRI. >70Ra
Powers available: 250W / 500W
Input voltage: AC95-305V, 50-60Hz

Lamp Driver: MW-ELG-240W-48A X 2PCS
Diver efficiency: >85%
Harmonic distortion (thd): < 10%
LED efficiency: 100 LM/W
Initial LED lumen: 50,000LM


Related color temperature(cct):
Cool white: 6000- 6500K, pure white: 4000-4500K, warm white: 2700 - 3000K
Other available color: Red, yellow, blue, green, amber, RGB
Distribution of the light: LED+ secondary distribution of the light reflector
The curve of light distribution: Symmetric expression/circular glare


Protected grade: IP65
Working temperature: -20 ~ 50º C
Working humidity: -10 ~ 90%rh
Storage temperature: -25 ~65º C
Materials: Aluminum+super thoughed PC cap with high efficiency transmittance
Lifespan: > 50, 000 hours


Application:
Landscape, Building, Tunnel, Sports field, workshop, warehouse, toll station, gas station, supermarket, gym, exhibition hall, public lighting places


Products advantages:
1. XML2 Torch LED & Meanwell Driver with 5 years warranty.
2. Good heat dissipation, large & better heat dissipation design.
3. High purity aluminum with Fins reflector with high reflecting efficiency.
4. New high efficiency constant current driver, wide range of input voltage.
5. Energy-saving, environmental-friendly and long lifespan of 50, 000hours.
6. Convenient for installation, environmental protecting, almost free-maintenance.
