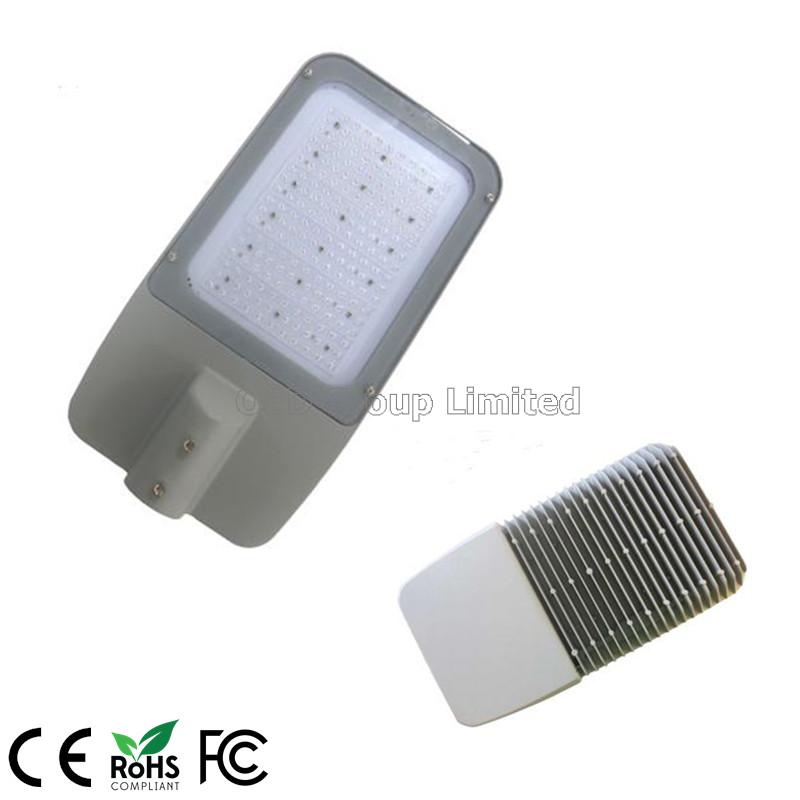

5 years warranty Aluminum IP66 150LM/W 60W LED Path light

  • Product Item:OED-HL1060
  • Category:Classic Streetlight
  • Views:396
  • Watt: 60W
  • Efficiency: 150LM/W
  • P.F.>0.95
  • Warranty: 5 years
  • Product Manual:Aluminum IP66 outdoor lighting high efficiency 150LM/W 60W LED Path Light
BASIC INFO

5 years warranty aluminum LED Light 150LM/W 60W LED Path Light IP66

Technical data:

Item name Quality LED street light
Power 60 Watts

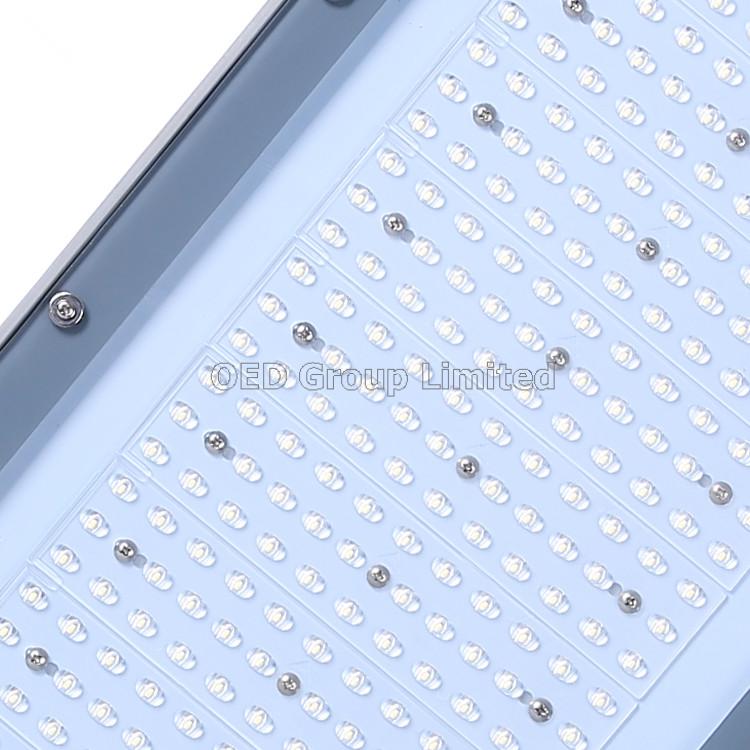

Light source Bridgelux LED Chip, SMD5050

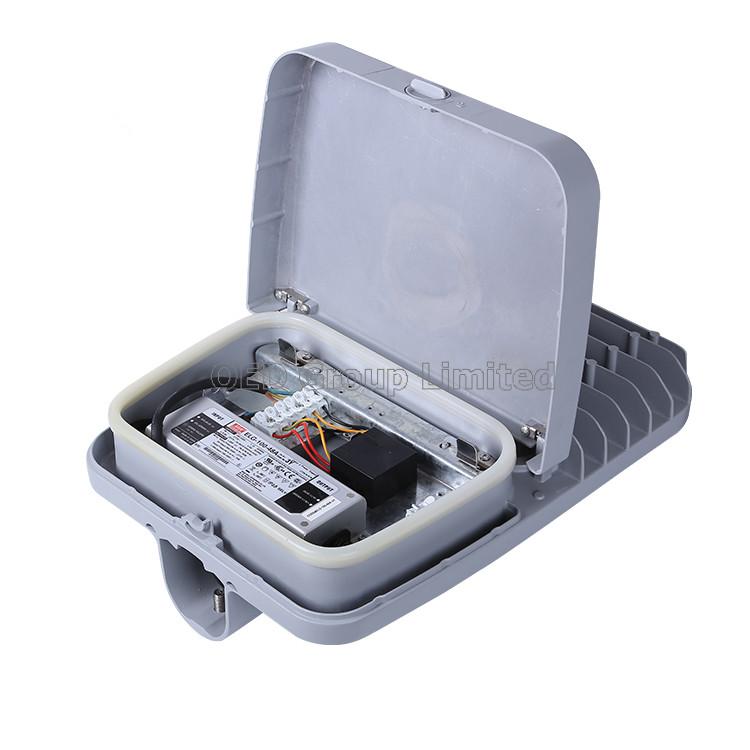

LED Driver Meanwell ELG series
Input Voltage AC100-277V / 50-60Hz
Color temperature 3000K - 6500K
Light Efficiency 150LM/W
Lumens 9,000LM
Power factor > 0.95
CRI > 80Ra
Defend grade IP66
Viewing angle 145 x 70°
Materials Alluminum Alloy
Operating Temperature -25ºC to +40ºC
Gross weight 5.80KG
Lamp dimensions 422 * 320 * 135mm
Carton size 54 * 39 * 24cm
Applications Street, road, yard, garden, parking lot etc
Lifetime 50,000hrs
Quality warranty 5 years
Certificates CE, ROHS, EMC, LVD, ISO9001

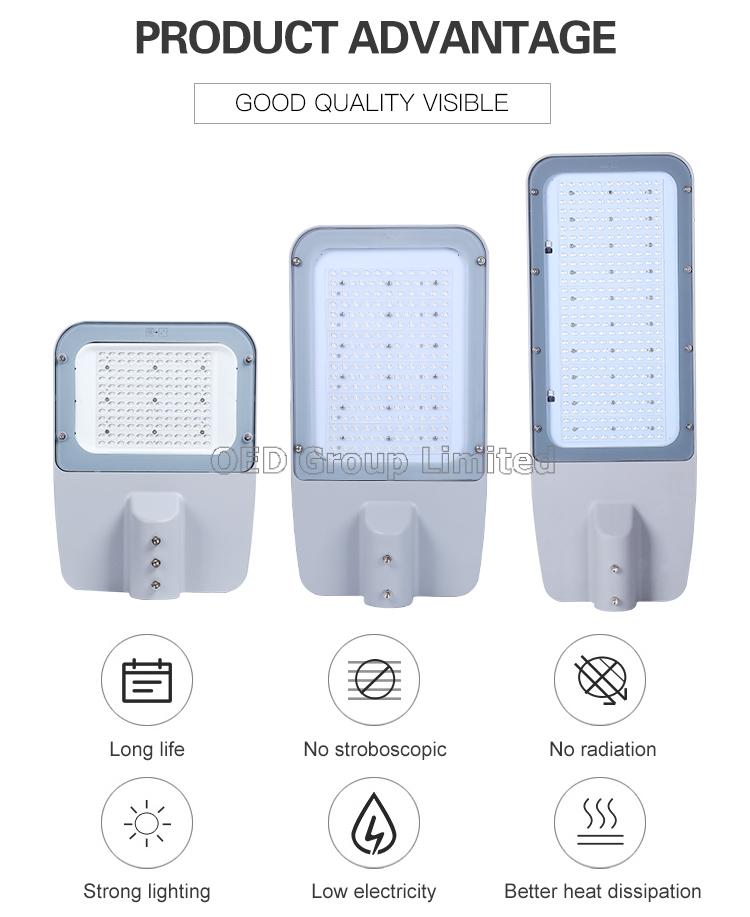

Advantages:

1. Our company specializes in producing all kinds of LED street lights, suitable for all kinds of road lighting
2. The LED street lamp housing is made of die-cast aluminum, which has good heat dissipation efficiency and the surface temperature will not exceed 50°C.
3. The LED street lamp lamp shell produced by our company uses good materials and technology. The material used does not contain aluminum slag. It is electrostatically sprayed, waterproof, dustproof, rustproof, anticorrosive, shockproof and wind resistant. The protection grade is IP66.
4. The surface of the lamp shell is smooth, can also be patterned; the size is accurate, the fit is tight, the thickness is even, so the light is soft and consistent.
5. Widely used in road lights, garden lights, residential road reconstruction, solar lights and so on.

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.


Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability:2-3 days for 500pcs LED street light, and 10-15 working days for 3000pcs LED street light at common requirements.
Each Lamp must pass 24 hours aging test and high voltage (6KV) surge test before we make packing and make delivery.


Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.


Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.


Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.


About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.


FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs led street lights.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led street light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
